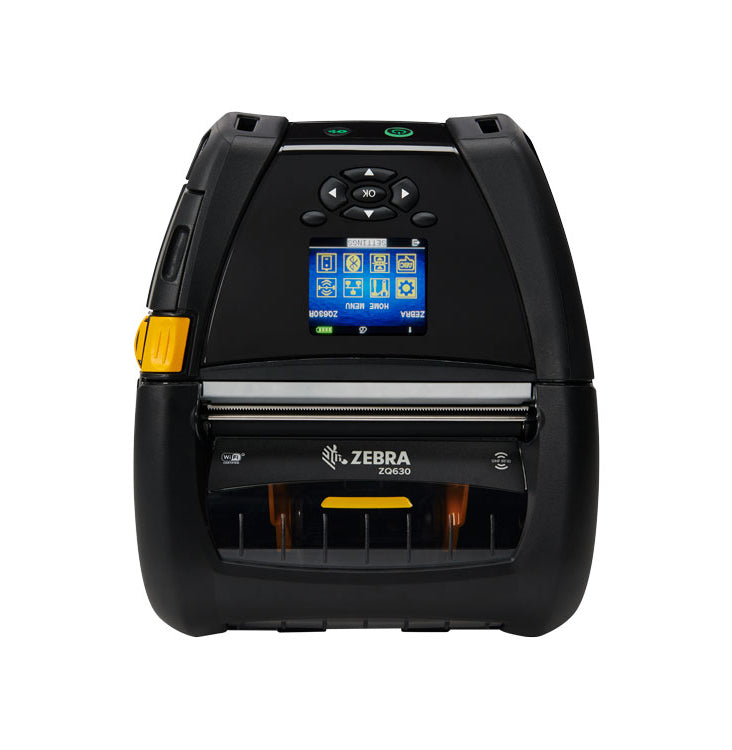

Zebra ZQ630 Plus 203 DPI Direct Thermal RFID Mobile Label Printer with Bluetooth and Wi-Fi

The Zebra ZQ630 Plus (ZQ63-RUWA004-00) is a rugged mobile direct thermal and RFID label printer delivering 203 DPI print resolution with Bluetooth, Wi-Fi, USB, and RS-232 connectivity. Designed for warehouse, retail, and field service environments requiring on-the-spot RFID tag encoding and barcode label printing from a mobile device, it delivers Zebra's proven Link-OS platform and Mobility DNA management suite in a portable form factor.

Key Features

• 203 DPI direct thermal printing for barcode, shipping, and compliance labels on the go
• Integrated UHF RFID encoder for simultaneous label printing and RFID tag programming
• Bluetooth and Wi-Fi for wireless mobile printing from smartphones and handhelds
• Rugged construction — drop rated for warehouse and field service environments
• Zebra Link-OS and Mobility DNA for enterprise mobile printer management
• USB and RS-232 for wired host connectivity

Product Specifications

• Part Number: ZQ63-RUWA004-00
• Manufacturer: Zebra
• Model: ZQ630 Plus
• Resolution: 203 DPI
• Print Method: Direct Thermal
• RFID: UHF RFID encoder
• Wireless: Bluetooth + Wi-Fi
• Form Factor: Mobile/portable

Print Specifications

• Resolution: 203 DPI
• Print Method: Direct Thermal (no ribbon required)
• Max Print Width: 4.09 inches (104mm)
• RFID: UHF RFID encoding (ISO 18000-6C / EPC Gen 2)
• Media: Direct thermal labels and RFID inlay labels

Connectivity Specifications

• Bluetooth: Bluetooth 4.1 (Classic + LE)
• Wi-Fi: 802.11 a/b/g/n dual-band
• USB: USB 2.0
• Serial: RS-232
• Management: Zebra Link-OS, Mobility DNA

Use Cases

• Warehouse mobile RFID label printing and tag encoding at point of application
• Retail floor RFID tagging and barcode label reprinting via mobile device
• Field service asset labeling with simultaneous RFID encoding and barcode print
• Direct thermal mobile label printing without ribbon for lightweight mobile operations

Compatibility

• UHF RFID tags compliant with ISO 18000-6C / EPC Gen 2 standard
• ZPL and CPCL label programming language compatible
• Zebra Mobility DNA: PrintTouch, Printer Profile Manager, Device Tracker
• Compatible with Android and iOS mobile printing apps via Bluetooth and Wi-Fi

Frequently Asked Questions

What RFID standard does the ZQ630 Plus support?

The ZQ630 Plus encodes UHF RFID tags per ISO 18000-6C (EPC Gen 2) — the standard used for retail, supply chain, and warehouse RFID label applications.

Does the ZQ630 Plus require a ribbon?

No — the ZQ63-RUWA004-00 is a direct thermal printer. No ribbon is required; direct thermal label media is used for all print output.

What is the difference between ZQ630 and ZQ630 Plus?

The ZQ630 Plus adds integrated UHF RFID encoding capability to the base ZQ630 mobile printer — enabling simultaneous barcode label printing and RFID tag programming in a single mobile device pass.

The Zebra ZQ630 Plus (ZQ63-RUWA004-00) delivers 203 DPI direct thermal mobile printing with UHF RFID encoding, Bluetooth, and Wi-Fi — a purpose-built mobile RFID label printer for warehouse, retail, and field service deployments. Order today for fast shipping.
