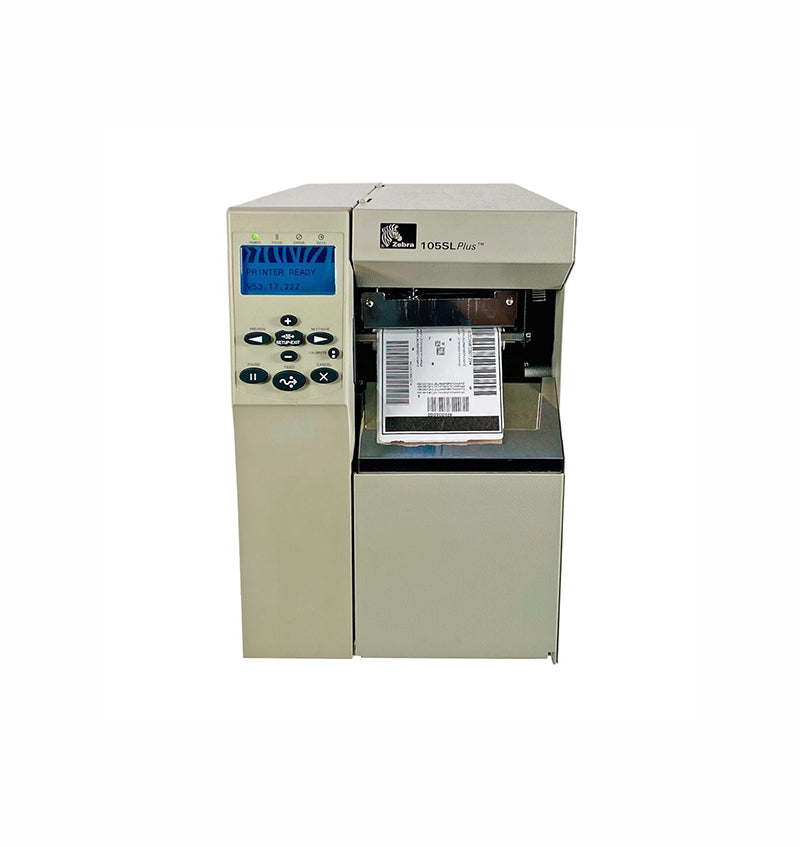

Zebra 105SL Plus 203 DPI 12 IPS Industrial Barcode Label Printer with LCD Display

The Zebra 105SL Plus (102-801-00000) is a 203 DPI industrial barcode label printer delivering 12 inches per second print speed with USB, Serial, and Parallel connectivity and a tear bar. Built for high-volume warehouse, manufacturing, and distribution label printing, the LCD display enables direct printer configuration and status monitoring without a host PC.

Key Features

• 203 DPI resolution for standard barcode and shipping label printing
• 12 IPS print speed for high-throughput industrial output
• USB, Serial (RS-232), and Parallel (IEEE 1284) interfaces
• LCD display with keypad for on-printer menu navigation and configuration
• Tear bar for manual label separation
• ZPL and EPL programming language support

Product Specifications

• Part Number: 102-801-00000
• Manufacturer: Zebra
• Model: 105SL Plus
• Resolution: 203 DPI
• Print Speed: Up to 12 IPS
• Print Method: Thermal Transfer / Direct Thermal
• Form Factor: Industrial desktop

Print Specifications

• Resolution: 203 DPI (8 dots/mm)
• Print Speed: Up to 12 IPS
• Max Print Width: 4.09 inches (104mm)
• Max Label Length: Up to 39 inches
• Print Method: Thermal Transfer and Direct Thermal
• Media Handling: Tear bar

Connectivity Specifications

• USB: USB 2.0
• Serial: RS-232
• Parallel: IEEE 1284
• Display: LCD with keypad
• Optional Expansion: Ethernet, 802.11 Wi-Fi

Use Cases

• High-volume warehouse shipping and receiving label printing
• Manufacturing production line compliance and work-in-process label printing
• Distribution center pallet and carton label output
• Legacy system integration requiring RS-232 Serial or Parallel connectivity

Compatibility

• ZPL and EPL label programming language compatible
• Zebra label media and thermal transfer ribbons
• Managed via Zebra Setup Utilities and ZebraNet Bridge
• Optional Ethernet and Wi-Fi modules for network printing

Frequently Asked Questions

Does the 102-801-00000 include Ethernet?

The base configuration includes USB, Serial, and Parallel. Ethernet and Wi-Fi are optional expansion modules — verify the specific configuration for your connectivity needs.

What print languages does the 105SL Plus support?

ZPL (Zebra Programming Language) and EPL (Eltron Programming Language) — compatible with existing Zebra label software and WMS integrations.

What is the max print width?

Up to 4.09 inches (104mm) — suitable for standard 4-inch warehouse, shipping, and compliance labels.

The Zebra 105SL Plus (102-801-00000) delivers 12 IPS industrial barcode printing at 203 DPI with multi-interface connectivity and LCD display — built for high-volume warehouse and distribution label printing. Order today and keep your label operations running at full speed.
