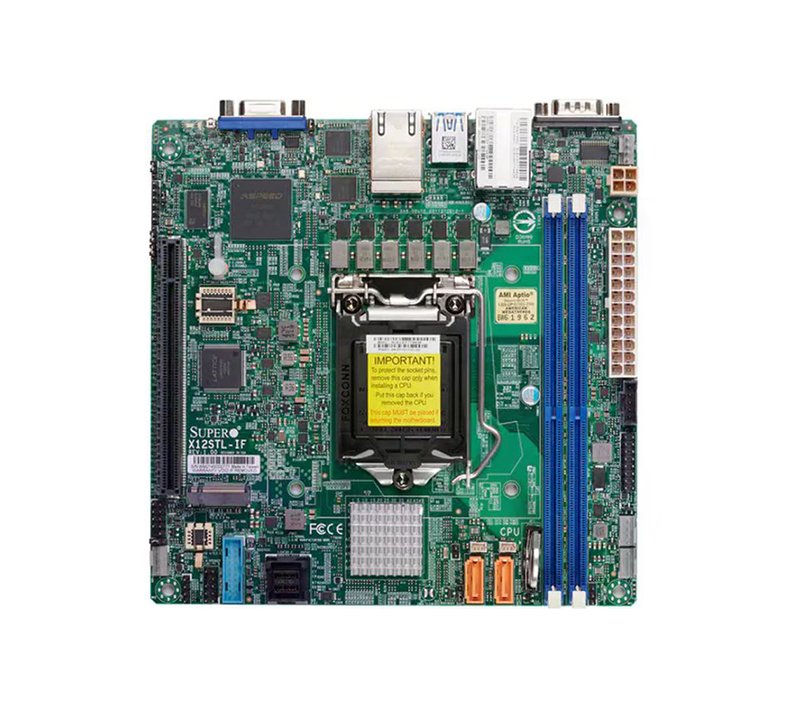

Supermicro Xeon E-2300/Pentium G10 Single Socket LGA1200 DDR4 SATA M.2 PCI-Express Supported Mini-ITX Server Motherboard - MBD-X12STL-IF-O

Supermicro Xeon E-2300/Pentium G10 Single Socket LGA1200 DDR4 SATA M.2 PCI-Express Supported Mini-ITX Server Motherboard - MBD-X12STL-IF-O

Part Number: MBD-X12STL-IF-O
Manufacturer: SuperMicro

Condition: New

Weight: 12.0 lbs

AvailabilityIn stock

Regular price $449.00
Regular price Sale price $449.00
Sold out
Shipping calculated at checkout.
Delivery Car

Fast Delivery

Return Icon

30 Days Returns Policy

Features Icon

Free Shipping Upto 10lbs

Warranty Icon

100% secure payment

We accept purchase orders from fortune 1000 Companies, government agencies, defence, Schools, and hospitals. For more details, contact us at (800) 504-1875 or simply submit Request for Quote form. Our Sales Team will prompt respond with a best solution tailored to your needs.

  • American Express
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Request For Quote

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Supermicro MBD-X12STL-IF-O Mini-ITX Server Motherboard — LGA1200, Xeon E-2300 / Pentium G10

The Supermicro MBD-X12STL-IF-O is the retail box version of the X12STL-IF Mini-ITX server motherboard, built on the Intel W480E chipset and supporting 11th Gen Intel Xeon E-2300 and Pentium Gold G6000 (Rocket Lake-S) processors in the LGA1200 socket. Designed for space-constrained edge computing, embedded server, and compact workstation deployments, the MBD-X12STL-IF-O packs enterprise-grade reliability and connectivity into a 6.7" x 6.7" form factor — including dual Intel GbE LAN, IPMI with dedicated management port, and support for ECC DDR4 memory. The "-O" suffix denotes the OEM/retail boxed version.

Key Specifications

  • Part Number / MPN: MBD-X12STL-IF-O
  • Form Factor: Mini-ITX (6.7" x 6.7" / 170mm x 170mm)
  • Chipset: Intel W480E
  • CPU Socket: LGA1200 (Single Socket)
  • Supported Processors: Intel Xeon E-2300 series, Intel Pentium Gold G6000 series (Rocket Lake-S, 11th Gen)
  • Max TDP Supported: 80W

Memory

  • Memory Slots: 2x DIMM slots
  • Max Memory: 128GB
  • Memory Type: DDR4-3200 ECC UDIMM / non-ECC UDIMM
  • Memory Channels: Dual-channel
  • ECC Support: Yes (with Xeon E-2300 processors)

Storage

  • SATA Ports: 4x SATA 3.0 (6Gb/s) via Intel W480E
  • M.2 Slots: 1x M.2 (PCIe 3.0 x4 / SATA, 2242/2260/2280)
  • RAID Support: RAID 0, 1, 5, 10 (Intel RSTe)

Expansion Slots

  • 1x PCIe 4.0 x8 (in x16 slot)
  • 1x PCIe 3.0 x1

Networking

  • 2x Intel I210-AT Gigabit Ethernet (RJ45)
  • 1x Dedicated IPMI LAN port (RJ45)

Management

  • IPMI: IPMI 2.0 with dedicated LAN
  • BMC: ASPEED AST2600 (onboard)
  • KVM over IP: Yes (via IPMI)
  • Remote Management: Full out-of-band management via dedicated IPMI port

I/O Ports (Rear)

  • 2x RJ45 GbE LAN
  • 1x RJ45 IPMI LAN
  • 2x USB 3.2 Gen 1 (Type-A)
  • 2x USB 2.0 (Type-A)
  • 1x VGA
  • 1x COM port

Onboard Headers & Connectors

  • 4x SATA 6Gb/s
  • 1x M.2 slot
  • 2x USB 3.2 Gen 1 headers
  • 2x USB 2.0 headers
  • 1x TPM header
  • 1x IPMB header
  • CPU and system fan headers

Power

  • Power Connector: 24-pin ATX + 8-pin CPU power
  • Power Supply: ATX (not included)

Physical & Environmental

  • Form Factor: Mini-ITX (170mm x 170mm)
  • Operating Temperature: 10°C to 35°C
  • Non-Operating Temperature: -40°C to 70°C
  • Humidity: 8% to 90% non-condensing

Compatibility

  • Intel Xeon E-2300 series (E-2314, E-2324G, E-2334, E-2356G, E-2374G, E-2378, E-2378G, E-2386G, E-2388G, E-2394, E-2396G)
  • Intel Pentium Gold G6405, G6505, G6605
  • Compatible with standard Mini-ITX chassis
