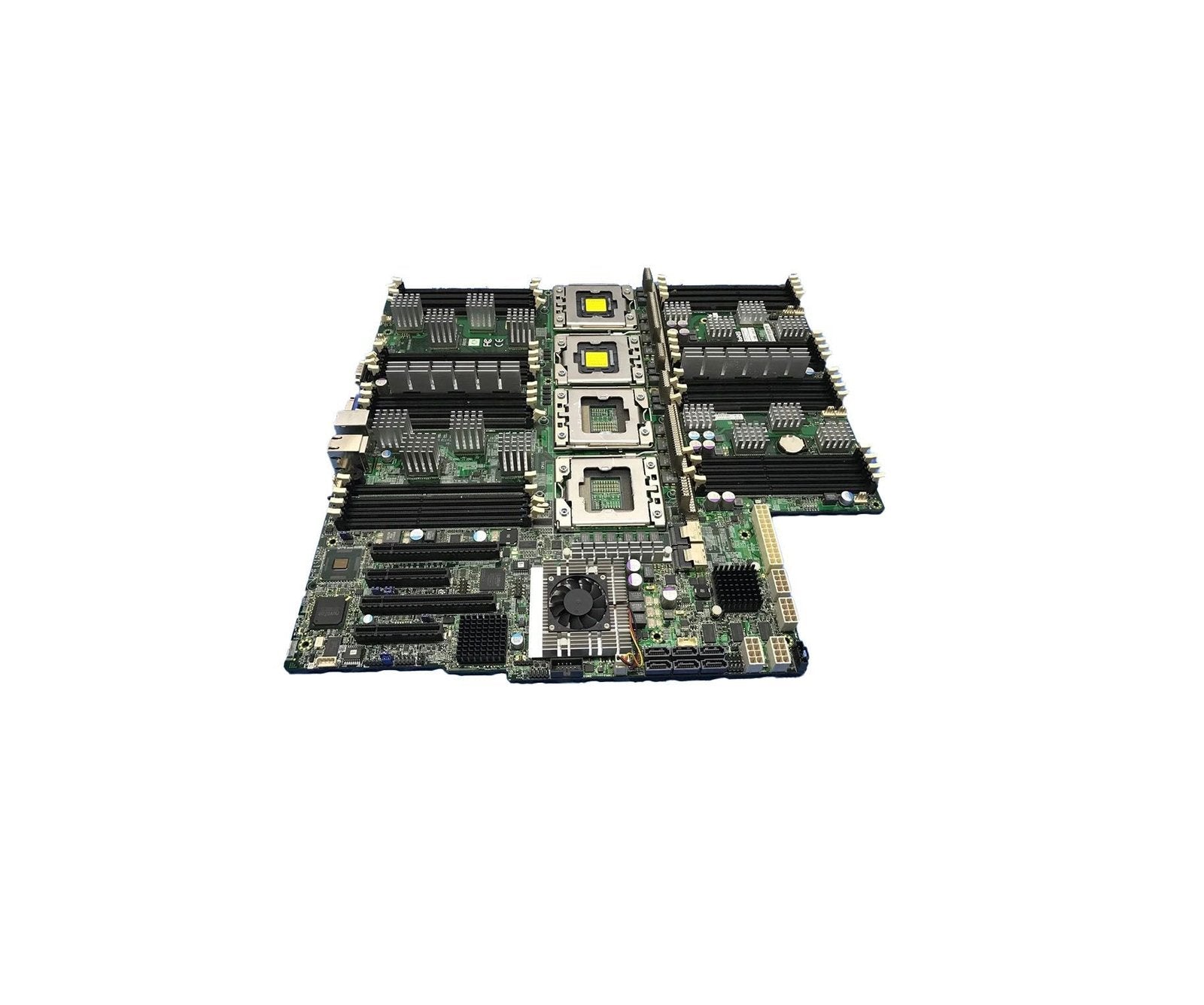

SuperMicro X8QB6-F Quad-Socket LGA1567 Server Motherboard — X8QB6-F

The SuperMicro X8QB6-F is a quad-socket LGA1567 server motherboard supporting Intel Xeon 7500 series (8-core) and Xeon E7-4800 series (10-core) processors with Intel 7500 chipset. Designed for mission-critical enterprise server deployments requiring maximum compute density, it supports up to four processors and large memory configurations — delivering exceptional multi-threaded performance for database, virtualization, and HPC workloads in a single server platform.

Key Features

• Quad-Socket LGA1567: Up to 4x Intel Xeon 7500/E7-4800 processors
• Intel 7500 Chipset: Enterprise-grade platform for mission-critical workloads
• Large Memory Capacity: Supports high-capacity ECC registered memory
• IPMI/iKVM: Out-of-band management for remote server administration
• Enterprise Reliability: SuperMicro's proven server-grade construction
• Expansion Slots: Multiple PCIe slots for I/O expansion

Technical Specifications

• Part Number: X8QB6-F
• CPU Sockets: 4x LGA1567
• Supported CPUs: Intel Xeon 7500 (8-core), Xeon E7-4800 (10-core)
• Chipset: Intel 7500
• Form Factor: Extended ATX (EATX) server board
• Management: IPMI 2.0, iKVM
• Memory: ECC Registered DDR3

Use Cases

• Enterprise Database Servers: Oracle, SQL Server on quad-socket Xeon platform
• High-Density Virtualization: Maximum VM density with quad-socket Xeon
• HPC Workloads: High core count for scientific computing and simulation
• Mission-Critical Applications: ERP, CRM, and business-critical workloads

Compatibility Notes

• Compatible with Intel Xeon 7500 series and Xeon E7-4800 series LGA1567 processors
• Requires ECC Registered DDR3 memory
• Requires compatible server chassis supporting EATX form factor
• IPMI management requires network connection to dedicated IPMI port

Frequently Asked Questions

How many processors does the X8QB6-F support?

The X8QB6-F supports up to 4 processors in LGA1567 sockets — Intel Xeon 7500 series (8-core) or Xeon E7-4800 series (10-core).

What memory type does this board require?

The X8QB6-F requires ECC Registered DDR3 memory. Standard unbuffered or DDR4 memory is not compatible.

Does this board include remote management?

Yes — the X8QB6-F includes IPMI 2.0 with iKVM for out-of-band remote server management.

Product Details

• Part Number: X8QB6-F
• Manufacturer: SuperMicro
• Model: X8QB6-F
• Product Type: Quad-Socket Server Motherboard

Whether you are building a high-density virtualization server, deploying a quad-socket database platform, or expanding HPC compute capacity, the SuperMicro X8QB6-F delivers the quad-socket Xeon performance, enterprise reliability, and IPMI management your mission-critical server demands.
