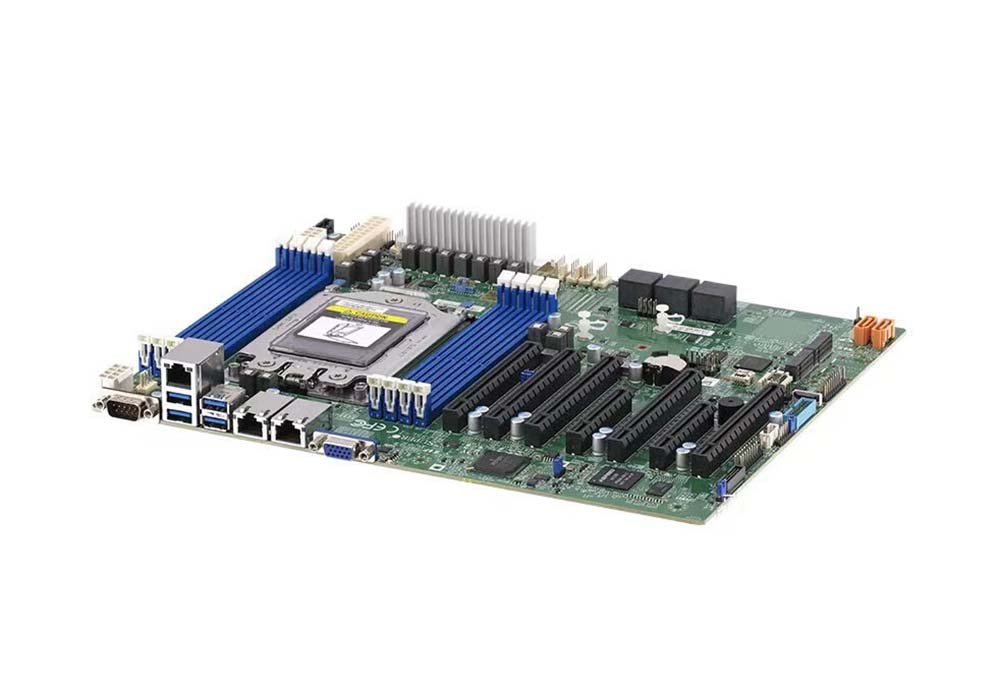

Supermicro H12SSL-I Single Socket SP3 AMD EPYC 7002/7003 DDR4 ATX Server Motherboard — H12SSL-I

The Supermicro H12SSL-I is a single-socket SP3 ATX server motherboard supporting AMD EPYC 7002 (Rome) and 7003 (Milan) processors. With DDR4 ECC RDIMM/LRDIMM support, SATA, PCIe 4.0, and M.2, it delivers a feature-rich platform for 1P server builds requiring AMD EPYC performance with broad I/O flexibility.

Key Features

• Single socket SP3 — supports AMD EPYC 7002 (Rome) and 7003 (Milan)
• 8x DDR4 DIMM slots — ECC RDIMM/LRDIMM support
• PCIe 4.0 expansion for high-bandwidth GPU, NVMe, and networking
• SATA and M.2 storage connectivity
• ATX form factor for standard server chassis
• IPMI/BMC for out-of-band management

Product Specifications

• Part Number: H12SSL-I
• Manufacturer: Supermicro
• OEM Status: Retail (Boxed)
• Model: H12SSL-I
• Socket: SP3 (single socket)
• CPU Support: AMD EPYC 7002 / 7003
• Memory Slots: 8x DDR4
• Form Factor: ATX
• Storage: SATA, M.2
• Management: IPMI / BMC

Processor Specifications

• Socket: SP3
• CPU Support: AMD EPYC 7002 (Rome) and 7003 (Milan)
• Max TDP: Up to 280W

Performance Specifications

• Memory: 8x DDR4 ECC RDIMM/LRDIMM, up to 3200MHz
• Max Memory: Up to 2TB (with 256GB LRDIMMs)
• PCIe: PCIe 4.0 x16 slots
• Storage: 8x SATA 6Gb/s + M.2

Use Cases

• Single-socket AMD EPYC server builds for virtualization and cloud workloads
• AI/ML inference and HPC workloads with EPYC 7003 (Milan)
• Database and storage server deployments
• Cost-effective 1P EPYC server platform for data center deployments

Compatibility

• AMD EPYC 7002 (Rome) and 7003 (Milan) SP3 processors
• DDR4 ECC RDIMM and LRDIMM memory modules
• Standard ATX server chassis
• PCIe 4.0 expansion cards (GPU, NVMe HBA, networking)

Frequently Asked Questions

What is the difference between H12SSL-I and MBD-H12SSL-I?

H12SSL-I is the retail boxed version, while MBD-H12SSL-I is the bulk/OEM version (MBD prefix = motherboard, OEM packaging). Both are the same motherboard — select based on your packaging preference.

What is the difference between H12SSL-I and H12SSL-NT?

The H12SSL-NT adds onboard SAS connectivity (via an integrated SAS controller) in addition to SATA — making it suited for deployments requiring direct SAS drive connectivity without a separate HBA.

The Supermicro H12SSL-I delivers a single-socket SP3 ATX server platform for AMD EPYC 7002/7003 with DDR4 ECC memory, PCIe 4.0, SATA, M.2, and IPMI — a versatile 1P EPYC server motherboard for virtualization, AI/ML, and data center deployments.
