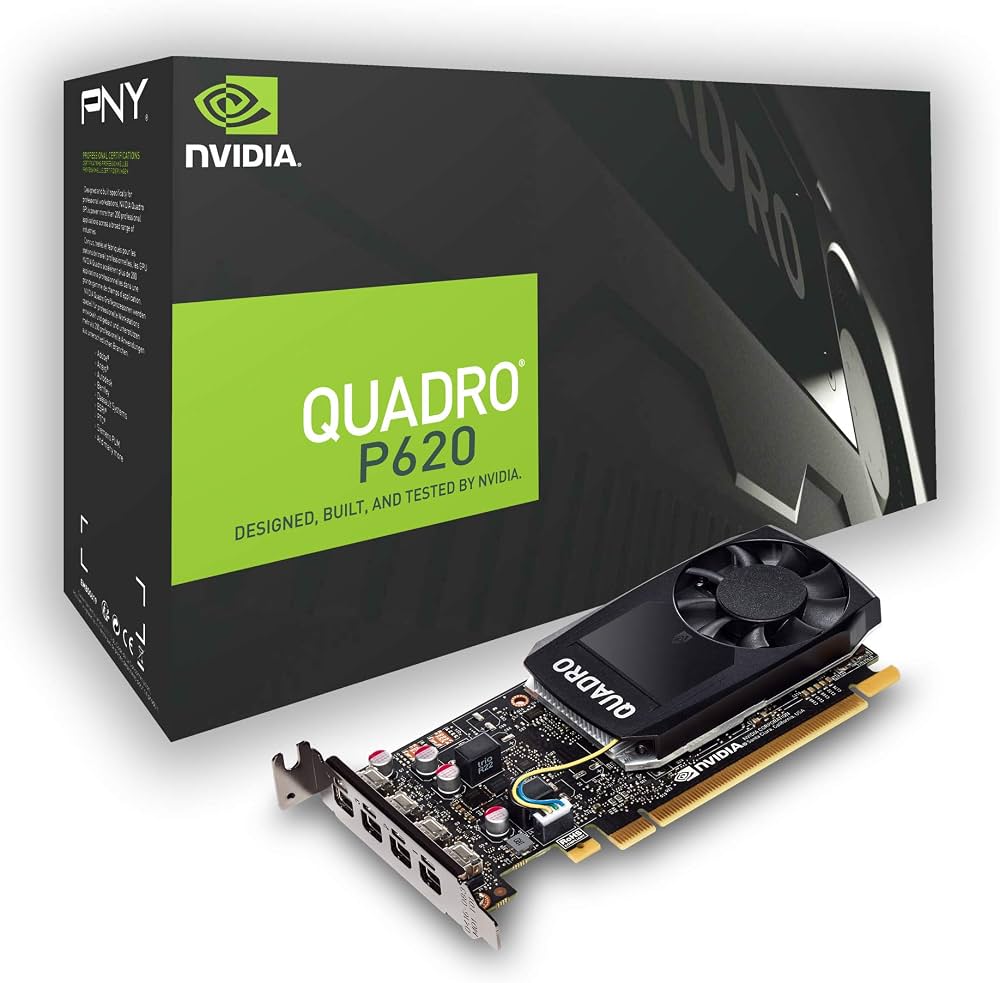

NVIDIA Quadro P620 2GB Graphics Card – VCQP620-PB

The NVIDIA Quadro P620 VCQP620-PB brings professional graphics and multi-monitor connectivity to a compact workstation. Its low-profile, single-slot design makes it a practical choice when expansion space is limited, while dedicated GDDR5 memory supports graphics workloads without relying on shared system memory. For buyers refreshing a workstation or building a focused desktop workspace, it offers a compact platform for professional visualization and multiple displays.

Key Features

• Professional Quadro graphics for workstation visualization workflows.
• Compact design suited to space-conscious workstation upgrades.
• Multi-display connectivity for expanded desktop workspaces.
• Active cooling with a modest maximum power requirement.

Product Specifications

• Part Number: VCQP620-PB
• Model: NVIDIA Quadro P620
• Product Category: Professional workstation graphics card
• GPU Memory: 2GB
• Memory Type: GDDR5
• Memory Interface: 128-bit
• Memory Bandwidth: Up to 80GB/s
• CUDA Cores: 512
• System Interface: PCI Express 3.0 x16
• Display Connectors: 4 × Mini DisplayPort 1.4
• Maximum Simultaneous Displays: 4
• Multi-Stream Support: DisplayPort 1.4 MST
• Supported Display Configuration: 4 × 4096 × 2160 at 60Hz
• Supported Display Configuration: 4 × 5120 × 2880 at 60Hz
• Maximum Power Consumption: 40W
• Cooling: Active
• Form Factor: Low profile
• Slot Width: Single slot
• Card Height: 2.713 inches
• Card Length: 5.7 inches
• Graphics API Support: OpenGL 4.5, DirectX 12.0, Vulkan 1.0
• Shader Model: 5.1

Use Cases

• CAD and design workstations handling professional graphics applications.
• Multi-monitor office setups that keep documents, dashboards, and communication tools visible together.
• Compact workstation refreshes where card clearance is an important purchasing consideration.

Compatibility

Requires a motherboard with a PCI Express x16 slot, sufficient chassis clearance, an appropriate mounting bracket, and a power budget suitable for the card. Displays must support the card's Mini DisplayPort outputs or use compatible adapters. Check driver availability for your operating system and application requirements before purchase; achievable display resolutions depend on the connected displays and connection hardware.

Frequently Asked Questions

Does this card have full-size DisplayPort or HDMI connections?

The native outputs are Mini DisplayPort. Displays using other connector types require suitable connection cables or adapters.

Is this the same physical version as the P620 V2?

No. VCQP620-PB identifies the original P620 listed by PNY with a 5.7-inch card length. Verify the exact part number when planning chassis clearance.

Can I assume it will fit any small-form-factor computer?

No. Check the expansion slot, internal clearance, mounting bracket configuration, and system power capacity before ordering.

Should I check my software before upgrading?

Yes. Confirm that your application's GPU requirements and available drivers match your operating system and intended workload.

Choose the VCQP620-PB when you need a workstation-focused graphics upgrade that fits a compact expansion layout and supports an organized, multi-screen workspace. Matching the card's interface, mounting arrangement, and display connections to your system before ordering helps ensure that the upgrade fits both your hardware and the way you work.
