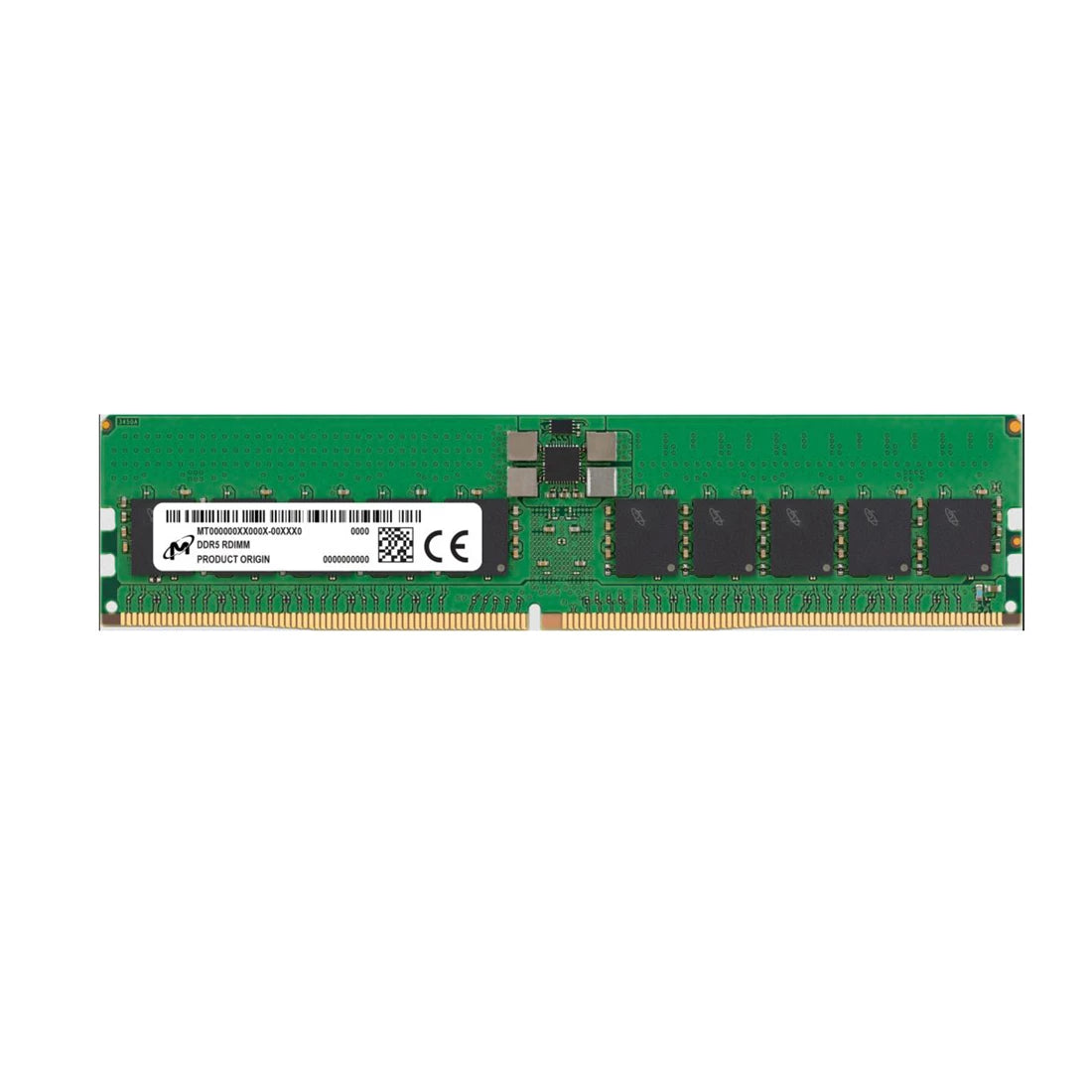

Micron 32GB DDR5 6400MT/s ECC Unbuffered Memory Module

The Micron MTC20F2085S1RC64BD1 is a 32GB DDR5-6400 ECC UDIMM designed for workstations and high-performance platforms requiring error-correcting memory, delivering fast dual-channel bandwidth with CL52 latency on the latest Intel and AMD DDR5 platforms.

Key Features

• 32GB DDR5-6400 (PC5-51200) ECC Unbuffered DIMM
• CL52 latency optimized for high-frequency DDR5 operation
• ECC (Error-Correcting Code) for data integrity in workstation environments
• 288-pin UDIMM compatible with consumer and workstation DDR5 platforms
• On-Die ECC (oDEC) plus system-level ECC for layered error correction

Product Specifications

• Part Number: MTC20F2085S1RC64BD1
• Manufacturer: Micron
• Capacity: 32GB
• Type: DDR5 ECC UDIMM
• Speed: 6400MT/s (PC5-51200)
• CAS Latency: CL52
• Voltage: 1.1V
• Pins: 288-pin

Memory Specifications

• Ranks x Width: 2Rx8
• Die Revision: BD1
• ECC Type: ECC Unbuffered (UDIMM)
• On-Die ECC: Yes
• XMP/EXPO Support: Verify per motherboard
• Operating Temperature: 0°C to 85°C

Performance Specifications

• Peak Bandwidth: ~102.4 GB/s (dual channel)
• Burst Length: 16
• Prefetch: 16n
• JEDEC Standard: JESD79-5B compliant

Use Cases

• Workstation builds requiring ECC memory for data integrity (CAD, scientific computing)
• High-frequency DDR5 platforms seeking ECC protection without RDIMM overhead
• AI/ML workstation inference systems with error sensitivity requirements
• Enthusiast platform upgrades where ECC UDIMM is supported

Compatibility

• Compatible with Intel Xeon W-2400/W-3400 workstation platforms supporting ECC UDIMM
• Compatible with AMD Ryzen 7000/9000 series platforms with ECC UDIMM support (motherboard dependent)
• Requires DDR5-capable motherboard with 288-pin UDIMM slot
• Verify ECC UDIMM support with specific motherboard manufacturer before purchase

Frequently Asked Questions

Is ECC UDIMM the same as RDIMM?

No — ECC UDIMM is unbuffered and used in workstations and select consumer platforms. RDIMM (Registered DIMM) uses a register buffer and is designed for server platforms. They are not interchangeable.

Does the Ryzen 9000 series support ECC UDIMM?

AMD Ryzen 7000/9000 processors support ECC UDIMM at the CPU level, but actual ECC functionality depends on motherboard firmware support. Check your specific board's QVL.

What does BD1 die revision mean?

BD1 refers to Micron's internal die revision identifier for this DDR5 module, indicating the specific DRAM die used — relevant for overclocking compatibility and QVL matching.

The Micron MTC20F2085S1RC64BD1 is purpose-engineered for professionals who need the speed of DDR5-6400 with the reliability of ECC error correction — a combination that makes it well-suited for mission-critical workstation and compute-intensive deployments.
