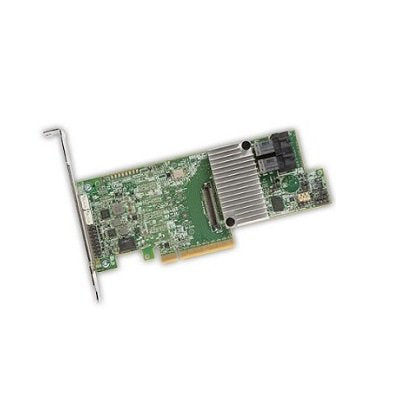

LSI MegaRAID 9361-8i 8-Port SAS 12Gb/s SATA 6Gb/s PCIe 3.0 x8 RAID Controller 05-25420-17

1 1

LSI MegaRAID 9361-8i 8-Ports SAS 12Gb/s / SATA 6Gb/s PCI-Express 3.0 x8 0/1/5/6/10/50 RAID Controller - 05-25420-17

Part Number: 05-25420-17

Manufacturer: LSI

Condition: Refurbished

Weight: 5.0 lbs

Availability: In stock

$152.24

Shipping calculated at checkout.

Quantity

Fast Delivery

Easy Returns

Free USA Shipping <10 lbs

Safe payment

We accept purchase orders from fortune 1000 Companies, government agencies, defence, Schools, and hospitals. For more details, contact us at (800) 504-1875 or simply submit Request for Quote form. Our Sales Team will prompt respond with a best solution tailored to your needs.

4.8 |

Request For Quote

Full Name *

Phone Number *

Messaging frequency may vary. Privacy Policy

Email Address *

Email me with news and offers

Preferred Condition *

Quantity *

How soon do you need it? *

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Description

LSI MegaRAID 9361-8i 8-Port SAS 12Gb/s / SATA 6Gb/s PCIe 3.0 x8 RAID Controller — 05-25420-17

The LSI MegaRAID 9361-8i (05-25420-17) is a high-performance 8-port SAS 12Gb/s and SATA 6Gb/s RAID controller card featuring a PCI-Express 3.0 x8 interface. Supporting RAID levels 0, 1, 5, 6, 10, and 50, it delivers enterprise-grade data protection, high throughput, and low latency for demanding server storage environments.

Key Features

8 internal SAS 12Gb/s / SATA 6Gb/s ports
PCI-Express 3.0 x8 host interface
Supports RAID 0, 1, 5, 6, 10, and 50
1GB onboard DDR3 cache for high-performance I/O
LSI SafeStore encryption services support
MegaRAID Storage Manager for centralized management

Product Specifications

Part Number: 05-25420-17
Manufacturer: LSI (Broadcom)
Model: MegaRAID 9361-8i
OEM Status: Genuine LSI OEM
Host Interface: PCI-Express 3.0 x8
Drive Interface: SAS 12Gb/s, SATA 6Gb/s
Ports: 8 internal
RAID Levels: 0, 1, 5, 6, 10, 50
Cache: 1GB DDR3
Max Drives: Up to 32 (with expanders)

Interface Specifications

Host Interface: PCI-Express 3.0 x8
Drive Interface: SAS 12Gb/s / SATA 6Gb/s
Internal Ports: 8 (via 2x SFF-8643 connectors)
Max Drive Support: Up to 32 drives (with SAS expanders)
Cache Memory: 1GB DDR3 onboard

RAID & Performance Specifications

Supported RAID Levels: 0, 1, 5, 6, 10, 50
Max Sequential Read: Up to 2GB/s
Encryption: LSI SafeStore (SED support)
Management: MegaRAID Storage Manager, MegaCLI
OS Support: Windows Server, Linux, VMware ESXi

Use Cases

Enterprise server storage RAID configuration
Data center NAS and SAN storage arrays
High-availability server storage with RAID 5/6 redundancy
Virtualization host storage for VMware and Hyper-V
Database server high-performance storage

Compatibility

Compatible with PCIe 3.0 x8 server slots (backward compatible with PCIe 2.0)
Supports Windows Server 2008/2012/2016, Linux, and VMware ESXi
Compatible with SAS and SATA HDDs and SSDs
Managed via MegaRAID Storage Manager or MegaCLI

Frequently Asked Questions

What RAID levels does the MegaRAID 9361-8i support?: The LSI MegaRAID 9361-8i supports RAID levels 0, 1, 5, 6, 10, and 50 for flexible data protection and performance configurations.
How many drives can the 9361-8i support?: The 9361-8i supports up to 8 direct-attached drives, expandable to 32 drives with SAS expanders.
Does the MegaRAID 9361-8i support encryption?: Yes, it supports LSI SafeStore encryption services for self-encrypting drives (SEDs).

The LSI MegaRAID 9361-8i (05-25420-17) is a proven, enterprise-grade RAID controller built for demanding server storage environments. Order today for high-performance, reliable RAID storage with comprehensive data protection.
