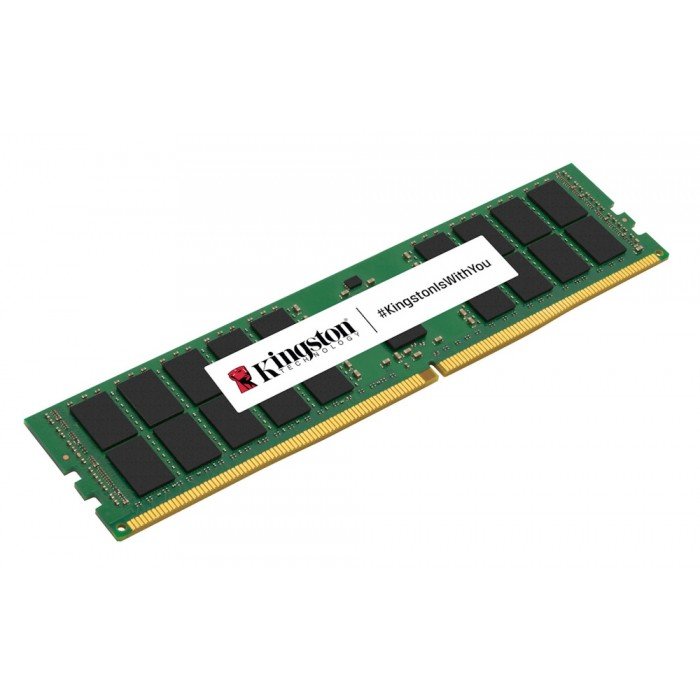

The Kingston KSM56R46BD4PMI-96HMI is a 96GB DDR5-5600 registered DIMM from the Server Premier line. It is dual rank with x4 chips, runs at 1.1V, and has 288 pins. Kingston lists it at CL46 with Hynix M-die chips.
Most DDR5 sizes double: 16GB, 32GB, 64GB. The 96GB size comes from a bigger chip. This module uses 24Gbit chips, where the 64GB module uses 16Gbit chips. Forty 24Gbit chips on an x80 module make 96GB with ECC.
| Part | Size | Chip size | DRAM |
|---|---|---|---|
| KSM56R46BD4PMI-64HAI | 64GB | 16Gbit | Hynix A-die |
| KSM56R46BD4PMI-96HMI (this module) | 96GB | 24Gbit | Hynix M-die |
Both are 2Rx4 DDR5-5600 modules, and Kingston lists both as Full Lock.
Kingston can lock all the main parts of a Server Premier module for consistency: the DRAM, the register chip, the power chip, and more. A locked parts list means modules bought months apart stay alike. The lighter option, DRAM Lock, fixes only the DRAM die revision.
A server that takes this module has to support DDR5 RDIMMs at 5600 MT/s. Check your server's memory guide for 96GB support. If the CPU tops out at 4800, the module runs at 4800. It can't share a server with unbuffered DIMMs. Eight modules give 768GB. Sixteen give 1.5TB.
Yes. Kingston puts a power management chip on every DDR5 module. It sets the 1.1V supply on the module itself.
No. Registered ECC modules need a server board.
Two sub-channels of 40 bits each: 32 data bits plus 8 ECC bits.
Dual rank. The 2R in 2Rx4 means two ranks of x4 chips. Each rank holds twenty chips.
Kingston lists CL46. At 5600 MT/s that is about 16.4 ns to the first data, close to DDR5-4800 at CL40. The module moves 44.8 GB/s.
The chips are bigger and from a different die. The ranks, speed, and voltage are the same.
| Brand | Kingston |
|---|---|
| Series | Server Premier |
| Part number | KSM56R46BD4PMI-96HMI |
| Capacity | 96GB |
| Type | DDR5 RDIMM |
| Speed | 5600 MT/s (PC5-44800) |
| Rank | 2Rx4 |
| Timing | CL46 |
| DRAM | 24Gbit Hynix M-die |
| Width | x80 (EC8) |
| Component control | Full Lock |
| Voltage | 1.1V |
| Pins | 288 |
