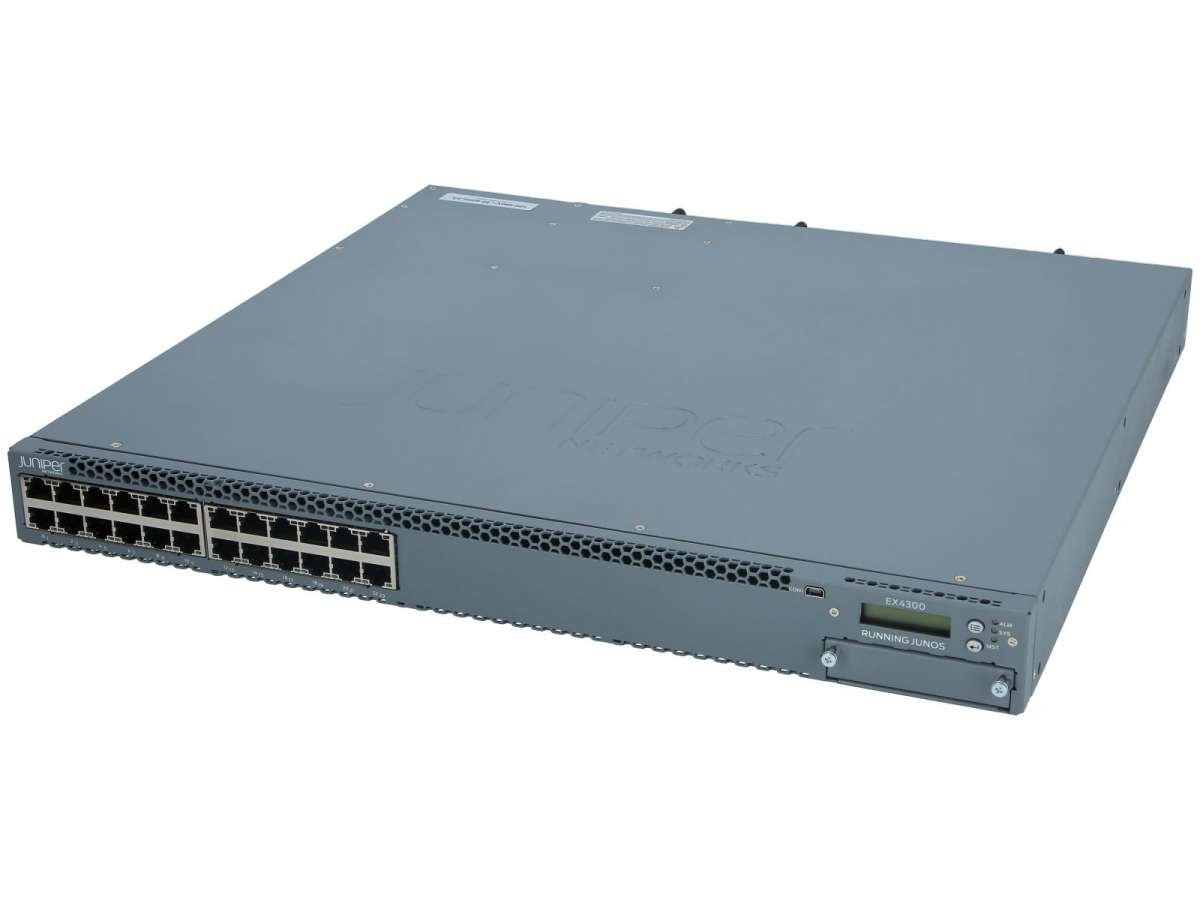

Juniper EX4300-24T 24-Port GbE Layer 3 Managed Access Switch

The Juniper EX4300-24T is a 24-port 10/100/1000BASE-T Layer 3 managed access switch offering advanced routing, Virtual Chassis stacking, and Junos OS management — engineered for enterprise campus access layer deployments requiring scalable, resilient GbE connectivity with full L3 feature depth.

Key Features

• 24 x 10/100/1000BASE-T copper ports for universal GbE access layer connectivity
• Virtual Chassis technology — stack up to 10 EX4300 switches as a single logical device
• Full Layer 3 routing including OSPF, BGP, RIP, and static routing via Junos OS
• 4 x SFP+ uplink ports supporting 1GbE and 10GbE uplink connections
• Junos OS for consistent policy, automation, and management across the Juniper portfolio

Product Specifications

• Part Number: EX4300-24T
• Manufacturer: Juniper Networks
• Ports: 24 x 10/100/1000BASE-T + 4 x SFP/SFP+ uplinks
• Switching Capacity: 128 Gbps
• Forwarding Rate: 95.2 Mpps
• Layer: Layer 3
• Form Factor: 1U Rack-mountable

Switch & Port Specifications

• MAC Address Table: 16,000 entries
• VLAN Support: 4,094 VLANs
• Jumbo Frames: 9,216 bytes
• PoE: No (see EX4300-24P for PoE model)
• Stacking: Virtual Chassis (up to 10 members, 128 Gbps fabric)
• Redundancy: Redundant power supply support (optional)

Network & Protocol Specifications

• Routing: OSPFv2/v3, BGP, RIP v1/v2, VRRP, static routing
• Multicast: PIM SM/SSM, IGMP v1/v2/v3
• Security: 802.1X, MAC RADIUS, ACLs, DHCP snooping, DAI, IP source guard
• QoS: 8 queues per port, DSCP, 802.1p, WRED
• Management: Junos OS CLI, SNMP v1/v2c/v3, NETCONF, Juniper Mist

Use Cases

• Enterprise campus access layer with GbE copper connectivity and 10GbE uplinks
• Virtual Chassis multi-switch stacking for simplified access layer management
• Wiring closet GbE switch with full L3 routing for distributed enterprise networks
• Juniper Mist AI-driven campus deployments requiring EX-series access switches

Compatibility

• Stacks with EX4300-24P, EX4300-48T, EX4300-48P via Virtual Chassis
• Managed via Juniper Mist cloud platform for AI-driven operations
• Compatible with standard SFP and SFP+ transceivers for uplink flexibility
• Junos OS ensures consistent policy and configuration with EX, MX, and QFX platforms

Frequently Asked Questions

What is Juniper Virtual Chassis and how many EX4300 switches can be stacked?

Virtual Chassis allows up to 10 EX4300 switches to operate as a single logical switch with one management plane, one IP address, and a unified configuration — eliminating the complexity of managing individual switches while providing a 128 Gbps stacking fabric.

Does the EX4300-24T support PoE?

No — the EX4300-24T is a non-PoE model. For Power over Ethernet on all 24 ports, the EX4300-24P provides 370W PoE+ budget. Both models can be mixed within the same Virtual Chassis stack.

Can the EX4300-24T be managed by Juniper Mist?

Yes — the EX4300-24T supports Juniper Mist cloud management for AI-driven wired assurance, configuration automation, and anomaly detection when running a Mist-compatible Junos OS version.

The Juniper EX4300-24T delivers enterprise-grade Layer 3 switching with Virtual Chassis scalability and Junos OS consistency in a compact 1U form factor — providing the access layer foundation for campus networks that demand full routing capability, flexible uplinks, and unified cloud management through Juniper Mist.
