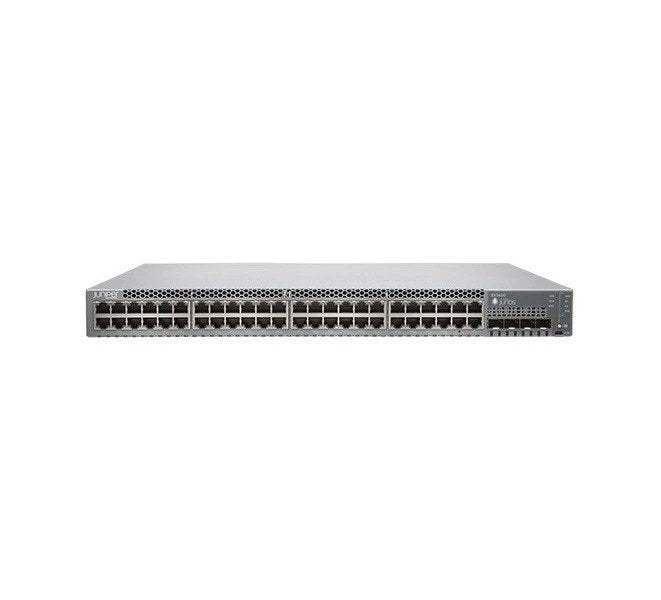

Juniper EX2300-48T 48-Port GbE Layer 3 Compact Access Switch

The Juniper EX2300-48T is a 48-port 10/100/1000BASE-T Layer 3 managed access switch with 4 x SFP/SFP+ uplink ports — delivering enterprise GbE access connectivity in a compact, energy-efficient form factor suitable for rack, wall, or desktop mounting in campus wiring closet, branch office, and small enterprise deployments managed via Junos OS and Juniper Mist.

Key Features

• 48 x 10/100/1000BASE-T copper ports for universal GbE access connectivity
• 4 x SFP/SFP+ uplink ports for 1GbE or 10GbE distribution connectivity
• Compact 1U form factor supporting rack, wall, and desktop mounting
• Full Layer 3 routing with Junos OS for consistent enterprise network policy
• Juniper Mist AI-driven wired assurance for cloud-managed campus access

Product Specifications

• Part Number: EX2300-48T
• Manufacturer: Juniper Networks
• Access Ports: 48 x 10/100/1000BASE-T
• Uplink Ports: 4 x SFP/SFP+ (1GbE/10GbE)
• Switching Capacity: 176 Gbps
• Forwarding Rate: 130.9 Mpps
• Form Factor: 1U (rack, wall, or desktop mountable)

Switch & Port Specifications

• MAC Address Table: 16,000 entries
• VLAN Support: 4,094 VLANs
• Jumbo Frames: 9,216 bytes
• PoE: No (non-PoE — see EX2300-48P for PoE model)
• Stacking: Virtual Chassis (up to 4 EX2300 switches)
• Power: Internal AC PSU (non-redundant)

Network & Protocol Specifications

• Routing: OSPFv2/v3, RIP v1/v2, VRRP, static routing
• Multicast: IGMP v1/v2/v3 snooping, PIM SM/SSM
• Security: 802.1X, MAC RADIUS, ACLs, DHCP snooping, DAI, IP source guard
• QoS: 8 queues per port, DSCP, 802.1p, WRED
• Management: Junos OS CLI, NETCONF, SNMP v1/v2c/v3, Juniper Mist

Use Cases

• Campus wiring closet GbE access with 48-port copper connectivity and 10G uplinks
• Branch office network access switch with Juniper Mist cloud management
• Wall or desktop mounting for small office or conference room GbE access
• Virtual Chassis deployment stacking up to 4 EX2300 switches for unified management

Compatibility

• Stacks with other EX2300 models via Virtual Chassis (up to 4 members)
• Managed via Juniper Mist cloud platform for AI-driven wired assurance
• Compatible with standard SFP/SFP+ uplink transceivers and DAC cables
• Junos OS ensures consistent policy with EX4100, EX4400, and other EX series platforms

Frequently Asked Questions

What is the maximum Virtual Chassis size for EX2300-48T?

The EX2300 supports Virtual Chassis stacks of up to 4 switches. Using the SFP+ uplink ports as Virtual Chassis links, up to 4 EX2300-48T switches can be stacked as a single logical device with one management plane and IP address, providing up to 192 GbE access ports per stack.

Can the EX2300-48T be wall or desktop mounted?

Yes — the EX2300-48T supports rack, wall, and desktop mounting configurations. Optional wall-mount brackets are available for installations where rack mounting is not practical, such as conference rooms, small offices, or utility closets.

Does the EX2300-48T support BGP routing?

BGP is not supported on the EX2300 platform — it supports OSPFv2/v3, RIP, and static routing for L3 access deployments. For deployments requiring BGP, the EX4100 or EX4400 series provides full BGP support in the EX access switch family.

The Juniper EX2300-48T delivers 48-port GbE access connectivity with 10G uplinks, Junos OS Layer 3 routing, and Juniper Mist AI management in a compact, versatile form factor — providing cost-effective, cloud-managed GbE access switching for campus branch offices, wiring closets, and small enterprise environments.
