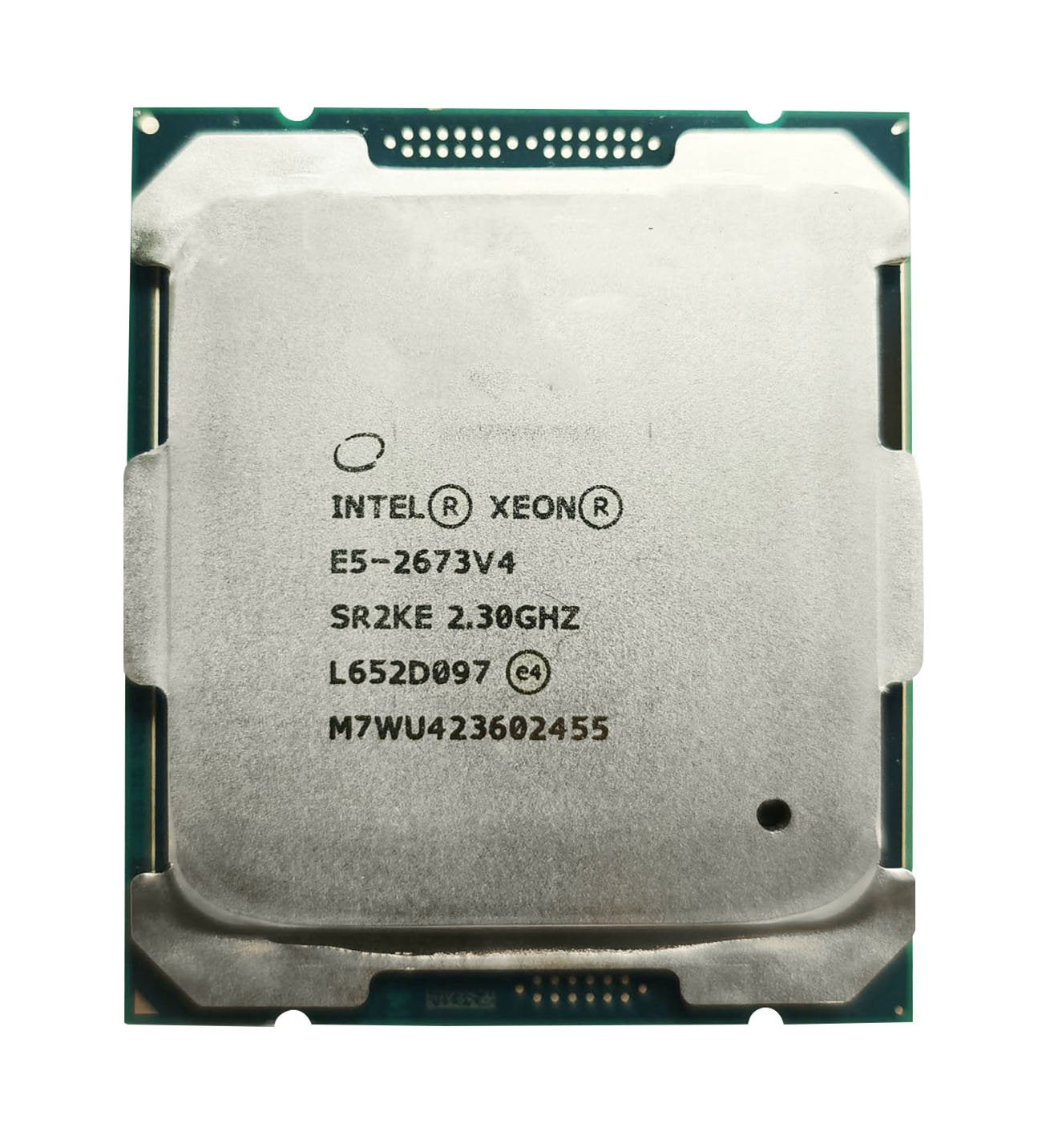

Intel Xeon E5-2673 v4 20-Core Processor — E5-2673V4

The Intel Xeon E5-2673 v4 is a 20-core 40-thread Broadwell-EP generation Intel Xeon E5 v4 processor operating at 2.30GHz base frequency with 50MB L3 cache on LGA2011-3 socket. Originally deployed in Microsoft Azure cloud infrastructure the E5-2673 v4 is widely available as a cost-effective high-core-count processor for workstation server and homelab builds on dual-socket LGA2011-3 platforms.

Key Features

• 20 cores / 40 threads — high core density for the LGA2011-3 platform
• 2.30GHz base frequency
• 50MB L3 cache
• Socket LGA2011-3 — Intel Xeon E5 v4 platform
• DDR4 ECC memory support — up to 4 channels per socket
• PCIe 3.0 support
• Cost-effective high-core-count option for LGA2011-3 platforms

Product Specifications

• Part Number: E5-2673V4
• Manufacturer: Intel
• OEM Status: OEM / Pull (Azure cloud decommission)
• Model: Xeon E5-2673 v4
• Generation: Broadwell-EP (Xeon E5 v4)
• Cores / Threads: 20 / 40
• Base Frequency: 2.30GHz
• L3 Cache: 50MB
• Socket: LGA2011-3
• QPI Speed: 9.60GT/s

Processor Specifications

• Cores: 20
• Threads: 40
• Base Clock: 2.30GHz
• L3 Cache: 50MB
• Socket: LGA2011-3
• Process Node: 14nm (Broadwell)
• Generation: Broadwell-EP
• QPI: 9.60GT/s
• TDP: 135W

Performance Specifications

• Memory Support: DDR4-2400 ECC up to 4 channels per socket
• PCIe: PCIe 3.0
• AVX-512: No (AVX2 supported)
• Max Turbo Frequency: Up to 3.3GHz

Use Cases

• Cost-effective high-core-count workstation and server builds on LGA2011-3
• Homelab and lab environments requiring dual-socket 20-core performance
• Virtualization hosts requiring high thread count at low cost
• Rendering and compute workloads benefiting from 40 threads
• Legacy enterprise server upgrades on existing LGA2011-3 platforms

Compatibility

• LGA2011-3 socket — Intel X99 and C612 chipset motherboards
• Compatible with DDR4 ECC RDIMM and LRDIMM
• Not compatible with LGA2011 (v1/v2) or LGA4677 platforms
• Verify motherboard BIOS support for E5 v4 processors

Frequently Asked Questions

Why is the E5-2673 v4 so affordable?

The E5-2673 v4 was originally deployed in Microsoft Azure cloud data centers. As Azure decommissions older hardware these processors become available on the secondary market at significantly reduced prices making them popular for homelab and budget server builds.

Does the E5-2673 v4 support ECC memory?

Yes the Xeon E5-2673 v4 supports DDR4 ECC RDIMM and LRDIMM memory up to 4 channels per socket.

Is this compatible with consumer X99 motherboards?

Yes the E5-2673 v4 is compatible with LGA2011-3 consumer X99 motherboards with appropriate BIOS updates though ECC memory support depends on the motherboard.

The Intel Xeon E5-2673 v4 delivers 20 cores at 2.30GHz with 50MB L3 cache on LGA2011-3 — a cost-effective high-core-count Broadwell-EP processor widely available from Azure cloud decommissions for homelab workstation and budget server deployments.
