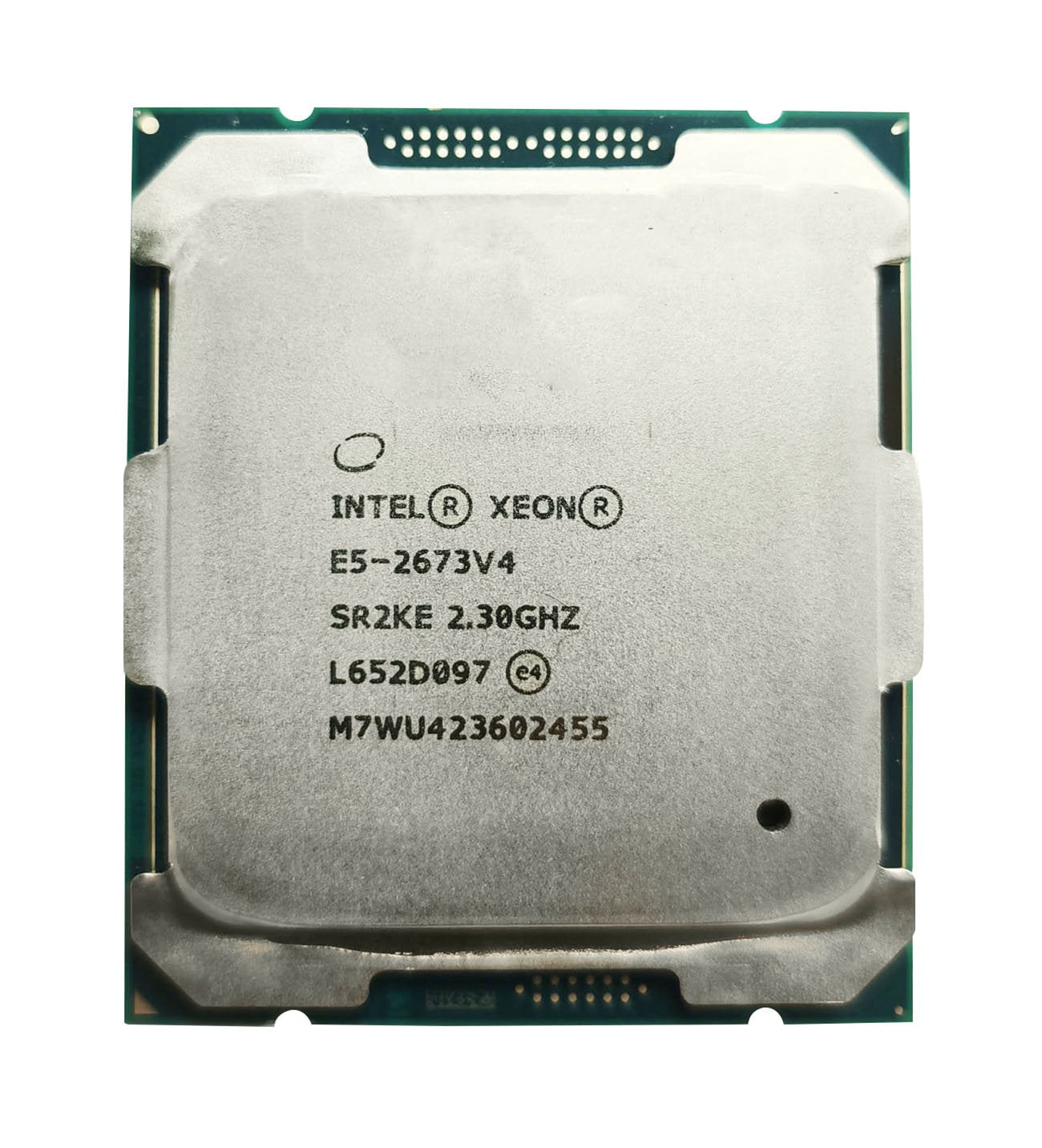

Intel Xeon E5-2673 v4 20-Core Processor — CM8066002733700

The Intel Xeon E5-2673 v4 (CM8066002733700) is a 20-core 40-thread Broadwell-EP generation Intel Xeon E5 v4 processor operating at 2.30GHz base frequency with 50MB L3 cache on LGA2011-3 socket. CM8066002733700 is the OEM ordering code for this processor. Originally deployed in Microsoft Azure cloud infrastructure the E5-2673 v4 is widely available as a cost-effective high-core-count processor for workstation server and homelab builds on dual-socket LGA2011-3 platforms.

Key Features

• 20 cores / 40 threads — high core density for LGA2011-3 platform
• OEM ordering code CM8066002733700
• 2.30GHz base frequency
• 50MB L3 cache
• Socket LGA2011-3 — Intel Xeon E5 v4 platform
• DDR4 ECC memory support — up to 4 channels per socket
• PCIe 3.0 support

Product Specifications

• Part Number: CM8066002733700
• Manufacturer: Intel
• OEM Status: OEM ordering code
• S-Spec: SR2KE
• Model: Xeon E5-2673 v4
• Generation: Broadwell-EP (Xeon E5 v4)
• Cores / Threads: 20 / 40
• Base Frequency: 2.30GHz
• L3 Cache: 50MB
• Socket: LGA2011-3
• QPI Speed: 9.60GT/s

Processor Specifications

• Cores: 20
• Threads: 40
• Base Clock: 2.30GHz
• Max Turbo: Up to 3.3GHz
• L3 Cache: 50MB
• Socket: LGA2011-3
• Process Node: 14nm (Broadwell)
• Generation: Broadwell-EP
• QPI: 9.60GT/s
• TDP: 135W

Performance Specifications

• Memory Support: DDR4-2400 ECC up to 4 channels per socket
• PCIe: PCIe 3.0
• AVX-512: No (AVX2 supported)

Use Cases

• Cost-effective high-core-count workstation and server builds on LGA2011-3
• Homelab and lab environments requiring dual-socket 20-core performance
• Virtualization hosts requiring high thread count at low cost
• Rendering and compute workloads benefiting from 40 threads
• Legacy enterprise server upgrades on existing LGA2011-3 platforms

Compatibility

• LGA2011-3 socket — Intel X99 and C612 chipset motherboards
• Compatible with DDR4 ECC RDIMM and LRDIMM
• Not compatible with LGA2011 (v1/v2) or LGA4677 platforms
• Verify motherboard BIOS support for E5 v4 processors

Frequently Asked Questions

What is the difference between CM8066002733700 and SR2KE?

CM8066002733700 is the OEM ordering code while SR2KE is the S-Spec identifier. Both refer to the same Intel Xeon E5-2673 v4 processor.

Why is the E5-2673 v4 so affordable?

The E5-2673 v4 was originally deployed in Microsoft Azure cloud data centers. As Azure decommissions older hardware these processors become available on the secondary market at significantly reduced prices.

Does the E5-2673 v4 support ECC memory?

Yes the Xeon E5-2673 v4 supports DDR4 ECC RDIMM and LRDIMM memory up to 4 channels per socket.

The Intel Xeon E5-2673 v4 (CM8066002733700) delivers 20 cores at 2.30GHz with 50MB L3 cache on LGA2011-3 — the OEM ordering code variant of this cost-effective Broadwell-EP processor widely available from Azure cloud decommissions for homelab workstation and budget server deployments.
