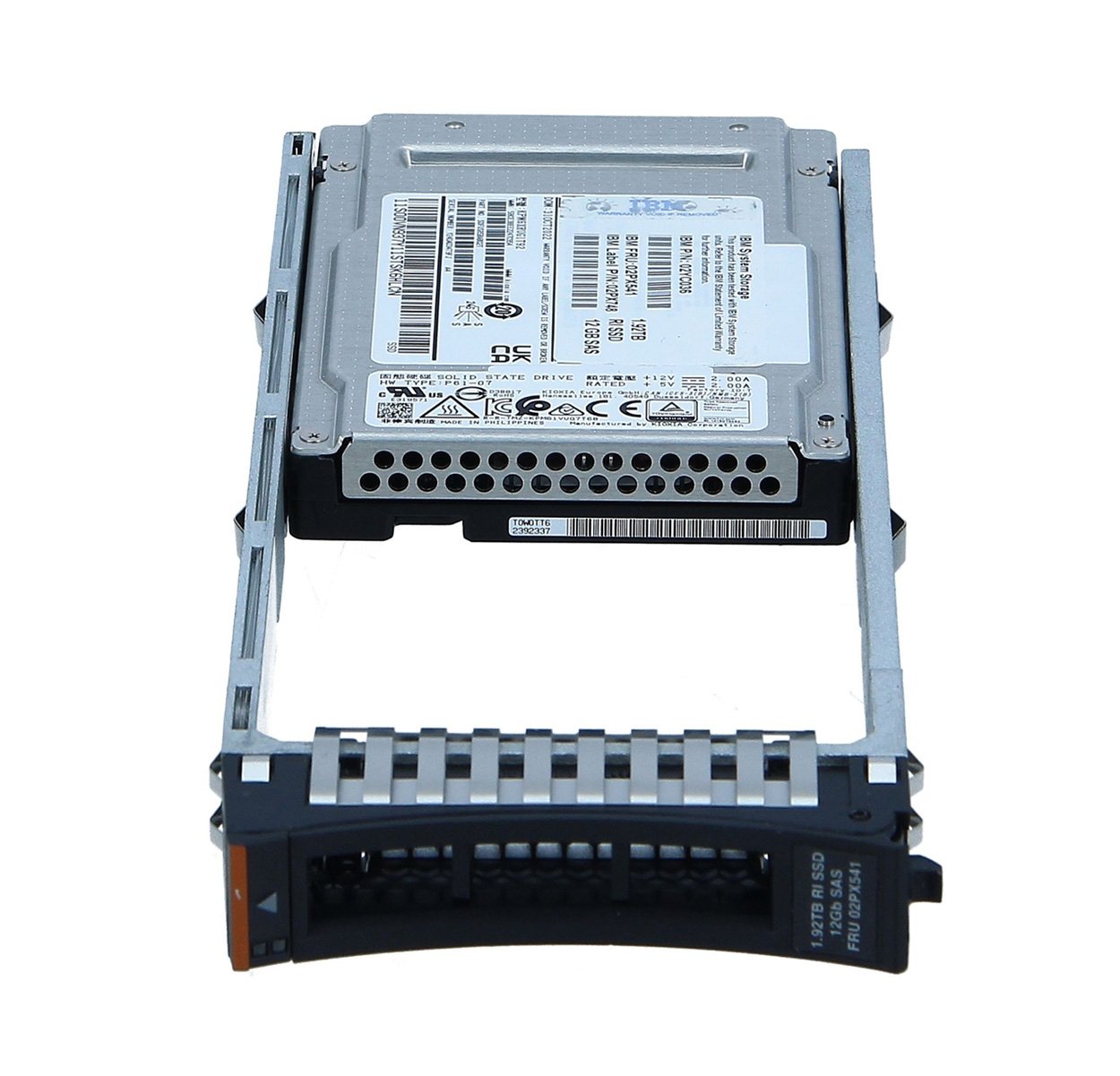

IBM 1.92TB SAS 12Gb/s 2.5-inch SSD with Tray for FlashSystem 5015 / 5035 / Storwize V5000E

The IBM 02YC036 is a 1.92TB SAS 12Gb/s 2.5-inch solid state drive with tray, IBM-qualified for use in FlashSystem 5015, FlashSystem 5035, and Storwize V5000E storage systems — offering a validated alternative supplier variant that maintains equivalent performance and full platform compatibility for enterprise capacity expansion.

Key Features

• 1.92TB SAS 12Gb/s SSD with tray for hot-swap installation in IBM FlashSystem 5000 series
• IBM-qualified alternative supplier variant ensuring supply continuity and platform validation
• Dual-port SAS 12Gb/s for full redundant path I/O in IBM storage backplanes
• Compatible with FlashSystem 5015, FlashSystem 5035, and Storwize V5000E enclosures
• Suitable for mixed workload and capacity-tier flash deployments

Product Specifications

• Part Number: 02YC036
• Manufacturer: IBM
• Capacity: 1.92TB
• Interface: SAS 12Gb/s
• Form Factor: 2.5-inch with Tray
• Compatible Systems: IBM FlashSystem 5015, 5035, Storwize V5000E
• Drive Type: SSD (Solid State Drive)

Storage Specifications

• Interface Ports: Dual-port SAS 12Gb/s
• NAND Type: TLC (Triple-Level Cell)
• Hot-Swap: Yes (with IBM storage tray)
• Workload Type: Mixed use
• Sequential Read: Up to 1,100 MB/s
• Sequential Write: Up to 900 MB/s

Performance Specifications

• Random Read (4K): Up to 200,000 IOPS
• Random Write (4K): Up to 40,000 IOPS
• MTBF: 2,000,000 hours
• Operating Temperature: 0°C to 70°C
• Power Loss Protection: Yes

Use Cases

• Capacity expansion in IBM FlashSystem 5015 and 5035 arrays requiring additional 1.92TB flash modules
• Storwize V5000E flash tier expansion for hybrid storage environments
• Replacement drive for failed 1.92TB SSD modules in IBM FlashSystem 5000 series
• Maintaining IBM storage qualification compliance with an approved supplier variant

Compatibility

• IBM FlashSystem 5015 and FlashSystem 5035
• IBM Storwize V5000E
• Requires IBM SAS 12Gb/s storage backplane for full dual-port redundancy
• Managed via IBM Storage Insights and IBM Spectrum Virtualize

Frequently Asked Questions

Is the 02YC036 interchangeable with 02PX541 in the same array?

Yes — IBM qualifies multiple supplier variants (02PX541, 02YC036, 02PX748) as functionally equivalent for the same platforms. Mixing variants within an array is supported provided all drives are IBM-qualified for that system.

Does this drive ship with the tray included?

Yes — the 02YC036 includes the IBM storage tray, enabling direct installation into FlashSystem 5015, 5035, and V5000E bays without a separate tray purchase.

How do I verify the correct SSD part number for my IBM storage system?

Use IBM's Fix Central or contact IBM support to confirm the qualified drive list (QDL) for your specific FlashSystem or Storwize firmware level before ordering replacement or expansion drives.

The IBM 02YC036 delivers the same 1.92TB SAS 12Gb/s flash performance and platform validation as other IBM-approved variants — giving storage administrators a reliable, IBM-certified option for expanding or replacing drives in FlashSystem 5015, 5035, and Storwize V5000E environments.
