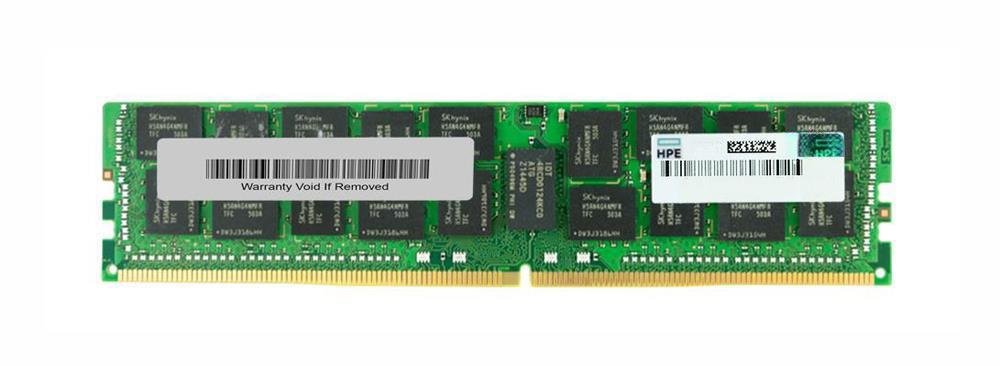

HPE 64GB DDR4-2933 ECC Load Reduced DIMM — P03054-091

The HPE P03054-091 is a 64GB DDR4-2933 (PC4-23466) ECC Load Reduced DIMM carrying an HPE factory/OEM configuration suffix, built for HPE ProLiant Gen10 servers. Sharing the same quad-rank 4Rx4 architecture and 1.2V, CL21 specifications as the P00926-B21 option kit, it is the factory-integrated procurement variant for this high-density LRDIMM.

Key Features

• 64GB DDR4-2933 LRDIMM factory variant — functionally identical to P00926-B21 option kit
• Load-reduced buffer for maximum memory channel population density in Gen10 servers
• 2933MHz (PC4-23466) ECC-protected bandwidth for Xeon Scalable Cascade Lake platforms
• 1.2V low-voltage quad-rank design for energy-efficient high-density memory deployment

Product Specifications

• Part Number: P03054-091
• Manufacturer: HPE
• Capacity: 64GB
• Type: DDR4 ECC Load Reduced (LRDIMM)
• Speed: 2933MHz (PC4-23466)
• CAS Latency: CL21
• Voltage: 1.2V
• Ranks x Width: 4Rx4
• Pins: 288-pin

Memory Specifications

• Memory Standard: JEDEC DDR4-2933
• Error Correction: ECC (Error Correcting Code)
• Buffer Type: Load Reduced (LRDIMM)
• DRAM Generation: DDR4

Performance Specifications

• Peak Bandwidth: ~46.9 GB/s (PC4-23466)
• ECC Type: Single-bit error correction, multi-bit error detection
• RAS Features: Advanced ECC, rank sparing, memory mirroring (platform dependent)

Use Cases

• HPE ProLiant Gen10 factory-configured high-density memory replacement
• Maximum LRDIMM population in Gen10 Xeon Scalable servers for in-memory workloads
• Large-scale virtualization environments requiring 64GB per slot at DDR4-2933
• SAP HANA and Oracle IMDB deployments with maximum per-socket memory capacity

Compatibility

• HPE ProLiant DL380 Gen10, DL360 Gen10, DL560 Gen10
• HPE ProLiant ML350 Gen10, BL460c Gen10
• Intel Xeon Scalable 2nd Generation (Cascade Lake) supporting DDR4-2933 LRDIMM

Frequently Asked Questions

What does the -091 suffix mean on HPE part numbers?

The -091 suffix denotes an HPE factory/OEM configuration variant, distinct from the -B21 option kit and -001 spare part designations. The hardware is functionally equivalent to P00926-B21.

Is P03054-091 interchangeable with P00926-B21?

Yes — both are HPE 64GB DDR4-2933 4Rx4 ECC LRDIMM modules for ProLiant Gen10 with identical specifications. They are functionally interchangeable in supported configurations.

What is the difference between P03054-091 and P03054-791?

P03054-791 is an RDIMM while P03054-091 is an LRDIMM — both are 64GB DDR4-2933 for Gen10, but the buffer type differs. Verify your server's supported DIMM types before mixing or substituting.

The HPE P03054-091 64GB DDR4-2933 LRDIMM is the factory-configured variant for HPE ProLiant Gen10 high-density memory deployments. Get it in stock today at a competitive price.
