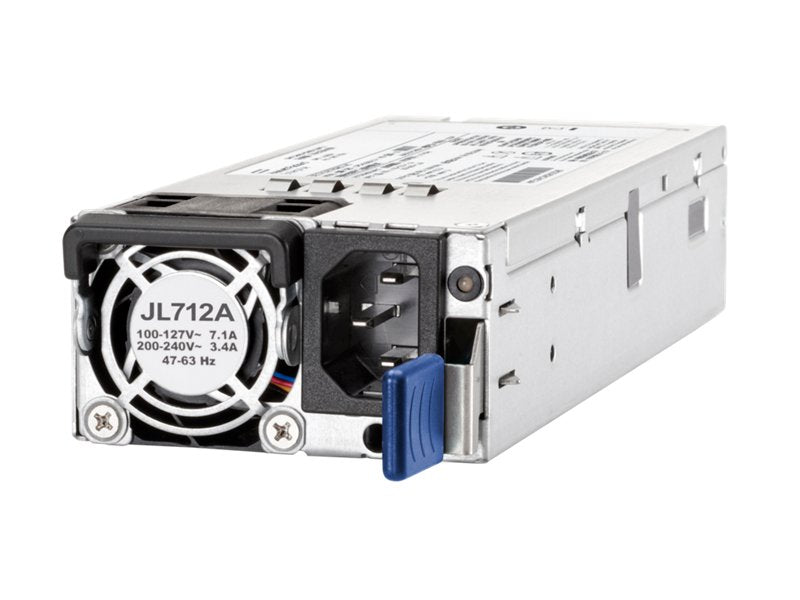

HPE Aruba X391 550W AC 80 Plus Platinum Power-to-Port Power Supply — JL712A

The HPE JL712A is a 550-watt AC 80 Plus Platinum power-to-port power supply for HPE Aruba X391-compatible switches. The power-to-port airflow direction ensures hot exhaust exits toward the network cable side, aligning with front-to-back (port-side exhaust) data center cooling architectures. 80 Plus Platinum efficiency minimizes power losses for energy-optimized data center switching deployments.

Key Features

• 550W AC 80 Plus Platinum PSU — high-efficiency power for Aruba X391 switch platforms
• Power-to-port airflow — exhaust toward cable side for front-to-back data center cooling
• 80 Plus Platinum certified for maximum AC-to-DC conversion efficiency
• Hot-swap capable for non-disruptive replacement in redundant PSU switch configurations

Product Specifications

• Part Number: JL712A
• Manufacturer: HPE / Aruba
• Output Power: 550 Watts
• Efficiency: 80 Plus Platinum
• Airflow: Power-to-Port (front-to-back / port-side exhaust)
• Input: AC
• Type: Hot-Swap Power Supply
• Compatible Platform: Aruba X391 switches

Power & Electrical Specifications

• Output: 550W AC power supply
• Efficiency Rating: 80 Plus Platinum — high-efficiency AC-to-DC conversion
• Airflow Direction: Power-to-Port — intake at power side, exhaust at port/cable side
• Hot-Swap: Yes — non-disruptive replacement under live switch operation

Use Cases

• Aruba X391 switch 550W PSU for front-to-back (port-side exhaust) cooling data centers
• High-efficiency 80 Plus Platinum PSU for energy-optimized Aruba switch deployments
• Redundant PSU configuration for N+1 power availability on Aruba X391 switches
• PSU airflow alignment in hot-aisle/cold-aisle data center cooling architectures

Compatibility

• HPE Aruba switches supporting the X391 PSU form factor — verify with Aruba QuickSpecs
• Designed for front-to-back (port-side exhaust) data center airflow architectures
• Not compatible with port-to-power (back-to-front) airflow configurations

Frequently Asked Questions

What is power-to-port airflow and when should I use it?

Power-to-port (front-to-back) airflow draws cool air in from the power supply side and exhausts hot air out the port/cable side. Use this PSU in data centers with hot-aisle/cold-aisle layouts where network cables face the cold aisle — hot air exhausts into the hot aisle. Mixing airflow directions in the same rack degrades cooling efficiency.

What is the difference between JL712A and port-to-power variants?

JL712A is power-to-port (front-to-back exhaust). Port-to-power (back-to-front) variants exhaust toward the power supply side. Always match PSU airflow direction to your rack's cooling architecture — mixing directions reduces cooling effectiveness and may cause thermal issues.

Is JL712A compatible with all Aruba X391 switch models?

JL712A is designed for Aruba X391 PSU-compatible switches. Not all Aruba switches use the X391 PSU form factor. Consult the Aruba QuickSpecs for your specific switch model to confirm JL712A compatibility and wattage requirements.

The HPE JL712A 550W 80 Plus Platinum power-to-port PSU delivers high-efficiency front-to-back airflow power for Aruba X391 data center switch deployments. Order today — in stock at the lowest price.
