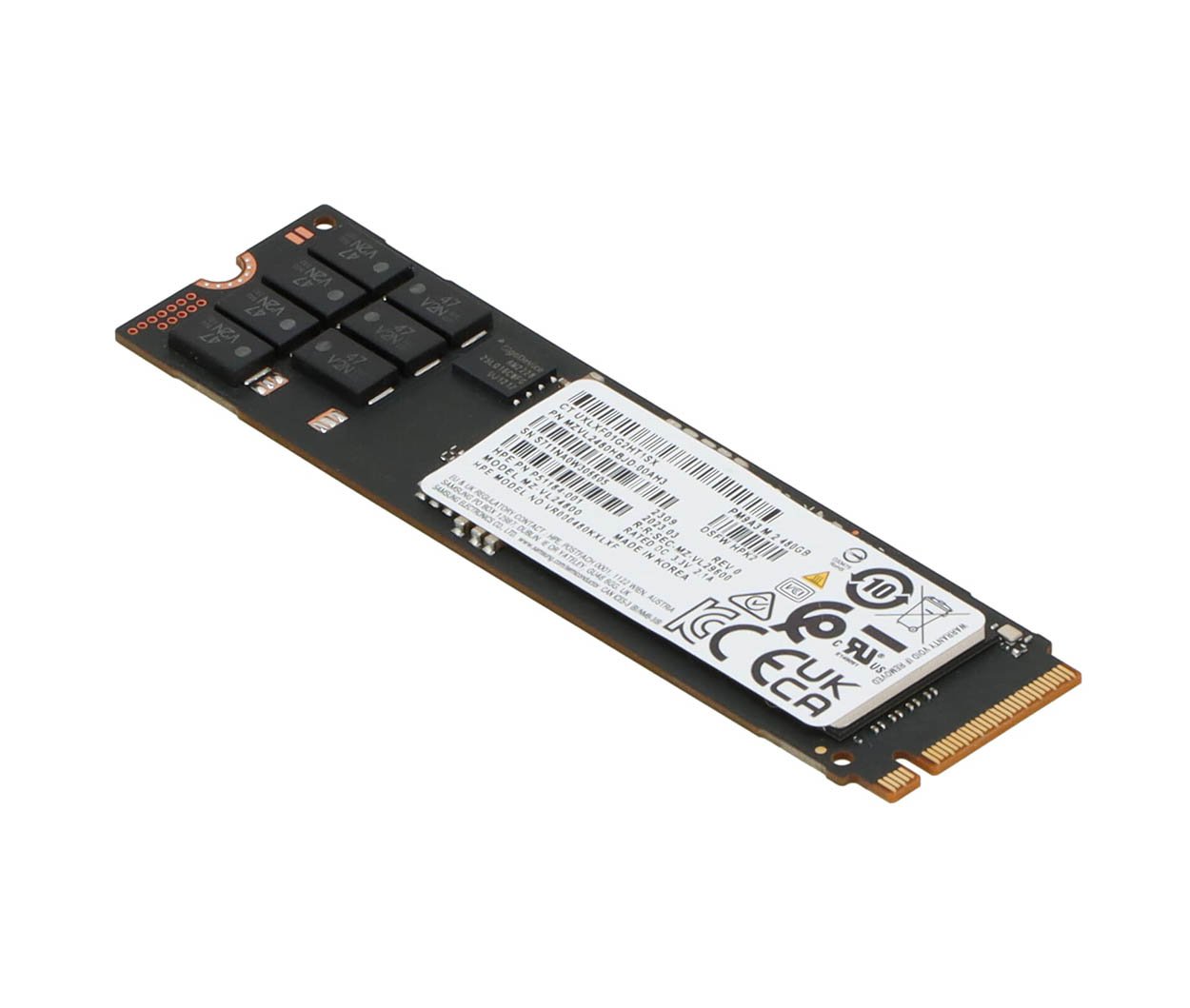

HPE 480GB NVMe PCIe 4.0 x4 Read Intensive Mainstream V-NAND TLC M.2 2280 SSD — P41538-001

The HPE P41538-001 is a 480GB NVMe PCIe 4.0 x4 NVMe 1.4 read-intensive mainstream performance V-NAND TLC solid state drive in M.2 2280 form factor for HPE ProLiant Gen10 Plus and Gen11 servers. Samsung V-NAND TLC technology delivers high-density flash with enterprise endurance, while PCIe 4.0 x4 provides maximum M.2 NVMe bandwidth for OS boot, hypervisor, and read-intensive embedded storage without consuming SFF drive bays.

Key Features

• 480GB NVMe PCIe 4.0 x4 read-intensive V-NAND TLC M.2 2280 SSD — high-performance boot and cache storage
• Samsung V-NAND TLC — advanced vertical NAND for high density and read-intensive enterprise endurance
• NVMe 1.4 protocol for enhanced queue depth, power management, and multi-namespace support
• M.2 2280 form factor — direct system board or carrier attachment without SFF bay consumption

Product Specifications

• Part Number: P41538-001
• Manufacturer: HPE / Samsung (V-NAND)
• Capacity: 480GB
• Interface: PCIe 4.0 x4 NVMe 1.4
• Form Factor: M.2 2280
• NAND Type: V-NAND TLC
• Performance Tier: Mainstream Performance
• Workload Type: Read Intensive
• Target Platform: HPE ProLiant Gen10 Plus, Gen11

Storage Specifications

• Drive Type: Read-Intensive NVMe SSD (PCIe 4.0 x4 M.2)
• Form Factor: M.2 2280 (80mm length)
• NAND: Samsung V-NAND TLC — vertical NAND for enterprise read-intensive density and endurance
• Workload Class: Read Intensive (~1 DWPD)
• Interface: PCIe 4.0 x4 NVMe 1.4 via M.2 M-key connector

Performance Specifications

• Interface Bandwidth: PCIe 4.0 x4 — up to ~7 GB/s sequential read for maximum M.2 NVMe throughput
• Endurance: Read-intensive V-NAND TLC — optimized for OS boot and read-dominant caching workloads
• Protocol: NVMe 1.4 — enhanced I/O queues, power management, and multi-namespace support

Use Cases

• HPE ProLiant Gen10 Plus/Gen11 480GB PCIe 4.0 NVMe M.2 2280 OS boot and hypervisor storage
• VMware vSphere and Hyper-V boot SSD with PCIe 4.0 performance without SFF bay consumption
• Read-intensive caching and logging SSD with V-NAND TLC endurance on Gen10 Plus/Gen11 M.2 slots
• High-performance embedded NVMe storage for management and OS partitions on Gen10 Plus/Gen11

Compatibility

• HPE ProLiant DL380/DL360 Gen10 Plus / Gen11 with M.2 2280 PCIe 4.0 slot or carrier
• HPE ProLiant ML350 Gen10 Plus / Gen11 supporting M.2 2280 NVMe PCIe 4.0
• Requires M.2 2280 PCIe 4.0 x4-compatible slot or HPE M.2 NVMe carrier — verify with HPE QuickSpecs

Frequently Asked Questions

What is the advantage of PCIe 4.0 over PCIe 3.0 for M.2 NVMe boot drives?

PCIe 4.0 x4 doubles the interface bandwidth of PCIe 3.0 x4 — from ~3.5 GB/s to ~7 GB/s sequential read. For OS boot and hypervisor storage, PCIe 4.0 reduces boot times and accelerates large VM image loads. In M.2 form factor, PCIe 4.0 ensures the interface is not the performance bottleneck for high-IOPS read-intensive V-NAND TLC SSDs.

What is NVMe 1.4 and how does it improve on NVMe 1.3?

NVMe 1.4 introduces enhanced I/O determinism, improved power management states (APST), persistent memory region support, multi-namespace sharing improvements, and enhanced error injection. For enterprise deployments, NVMe 1.4 improves latency consistency and power efficiency compared to NVMe 1.3 — relevant for hypervisor and database OS boot workloads.

Is P41538-001 interchangeable with P24188-B21 or P24886-001 M.2 22110 variants?

No — P41538-001 is M.2 2280 (80mm), while P24188-B21 and P24886-001 are M.2 22110 (110mm). Physical dimensions differ — 2280 and 22110 are not interchangeable. Confirm your server's M.2 slot length (80mm or 110mm) before ordering. P41538-001 also uses PCIe 4.0 vs. PCIe 3.0 for the 22110 variants — performance differs as well.

The HPE P41538-001 480GB NVMe PCIe 4.0 x4 V-NAND TLC M.2 2280 read-intensive SSD delivers maximum-bandwidth embedded flash storage for HPE ProLiant Gen10 Plus and Gen11. Order today — in stock at the lowest price.
