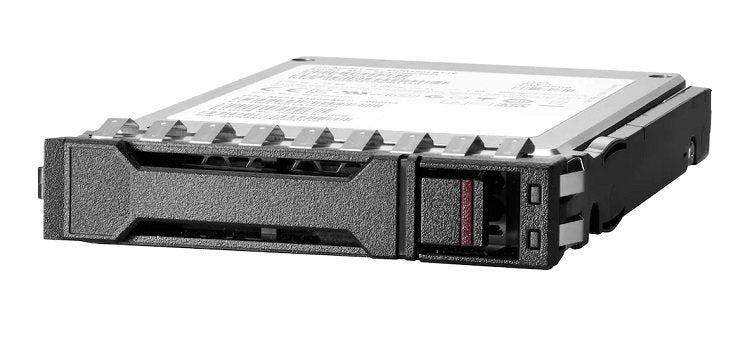

HPE 1.8TB SAS 12Gb/s 15000RPM Mission Critical 2.5-inch Hard Drive with Basic Carrier — P54682-001

The HPE P54682-001 is the HP spare part number for the 1.8TB SAS 12Gb/s 15000RPM Mission Critical SFF Basic Carrier hard disk drive, equivalent to option part P53562-B21. HP spare part numbers (ending in -001) are used for service depot, warranty replacement, and HPE support procurement. This 15K RPM Mission Critical SAS drive delivers the same enterprise-grade performance and reliability as the option part, validated for HPE ProLiant Gen9, Gen10, Gen10 Plus, and Gen11 servers. With 15,000RPM spindle speed and SAS 12Gb/s dual-port interface, it provides the lowest latency and highest IOPS available in spinning disk storage.

Key Specifications

• Spare Part Number: P54682-001
• Option Part Number: P53562-B21
• Manufacturer: HPE
• Capacity: 1.8TB
• Interface: SAS 12Gb/s
• Form Factor: 2.5-inch SFF (Small Form Factor)
• Drive Type: Hard Disk Drive (HDD)
• RPM: 15,000RPM
• Endurance Class: Mission Critical (MC)
• Carrier: HPE Basic Carrier (BC)
• Hot-Swap: Yes
• Digitally Signed: Yes — HPE firmware-authenticated
• Compatible Servers: HPE ProLiant Gen9, Gen10, Gen10 Plus, Gen11

Storage Specifications

• Capacity: 1.8TB (1,800GB)
• Interface: SAS 12Gb/s (Serial Attached SCSI)
• Form Factor: 2.5-inch SFF with HPE Basic Carrier
• RPM: 15,000RPM — highest spindle speed for maximum HDD performance
• Hot-Swap: Yes — replace without powering down the server
• Digitally Signed: Yes — HPE Digitally Signed Firmware ensures drive authenticity
• Endurance: Mission Critical — rated for 24/7 operation, up to 365TB/year or higher workload rating
• Dual-Port SAS: Yes — redundant SAS paths for high availability and MPIO

Performance Specifications

• SAS 12Gb/s interface — up to 1,200 MB/s theoretical interface bandwidth with dual-port redundancy
• 15,000RPM — lowest rotational latency and fastest seek times of any HDD class
• Mission Critical endurance — designed for continuous 24/7 heavy random I/O workloads
• Dual-port SAS — redundant paths for MPIO and high-availability SAN configurations
• Enterprise cache — optimized for transactional read/write workload patterns

Features

• HP spare part number — equivalent to option part P53562-B21; used for service depot, warranty replacement, and HPE support procurement
• HPE Digitally Signed Firmware — cryptographically authenticated by ProLiant server firmware
• HPE Basic Carrier — standard SFF hot-swap carrier for ProLiant SFF drive bays
• 15,000RPM Mission Critical — highest-performance HDD class for latency-sensitive workloads
• SAS 12Gb/s dual-port — redundant SAS paths for MPIO and high-availability configurations
• 24/7 rated — designed for continuous operation in enterprise data center environments
• HPE validated — tested and certified for ProLiant Gen9 through Gen11
• RoHS compliant

Compatibility

• HPE ProLiant Gen9 servers with SFF SAS drive bays (DL360 Gen9, DL380 Gen9, DL560 Gen9, and others)
• HPE ProLiant Gen10 and Gen10 Plus servers with SFF SAS drive bays (DL360 Gen10/Gen10 Plus, DL380 Gen10/Gen10 Plus, and others)
• HPE ProLiant Gen11 servers with SFF SAS drive bays (DL360 Gen11, DL380 Gen11, and others)
• Requires HPE Smart Array SAS controller or compatible SAS HBA
• Digitally signed — required for HPE servers with Digitally Signed Firmware enforcement enabled
• Always verify compatibility with HPE SPOCK or server QuickSpecs before ordering

Use Cases

• OLTP databases — Oracle, SQL Server, SAP HANA requiring maximum HDD IOPS and lowest latency
• Virtualization datastores — high-performance VM storage for VMware vSphere and Hyper-V
• High-frequency transactional applications — ERP, CRM, financial trading platforms
• SAN and DAS storage — high-performance primary storage tiers
• Service replacement — warranty and depot repair for ProLiant Gen9 through Gen11 servers

Ordering Notes

• P54682-001 is the HP spare part number — functionally identical to option part P53562-B21
• Spare part numbers are used for service depot, warranty replacement, and HPE support procurement
• Digitally signed — will not function in non-HPE servers or HPE servers with unsigned drive restrictions disabled
• Verify compatibility via HPE SPOCK or server QuickSpecs for your specific ProLiant model and Smart Array controller
