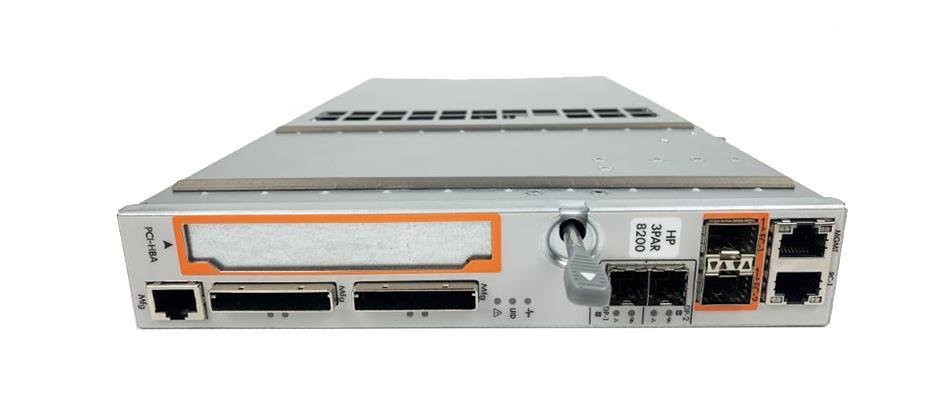

HPE 809805-001 Storage Controller for 3PAR StoreServ 8200

The HPE 809805-001 is a storage controller module for the HPE 3PAR StoreServ 8200 all-flash and hybrid storage array — providing the core compute and storage management intelligence that drives data path processing, cache management, RAID, deduplication, compression, and thin provisioning operations for the HPE 3PAR StoreServ 8200 platform.

Key Features

• HPE 3PAR StoreServ 8200 storage controller for all-flash and hybrid array configurations
• Dual-node active-active controller architecture for high availability and zero-downtime failover
• HPE 3PAR OS support with ASIC-accelerated deduplication, compression, and thin provisioning
• Supports HPE 3PAR Fast Class data tiering between SSD, SAS HDD, and NL-SAS tiers
• HPE factory/OEM (-001) variant for 3PAR StoreServ 8200 controller replacement

Product Specifications

• Part Number: 809805-001
• Manufacturer: HP / HPE
• Compatible System: HPE 3PAR StoreServ 8200
• Component Type: Storage Controller Node
• Controller Role: Active-active dual-node storage controller
• Interface: Internal 3PAR midplane interconnect

Component Specifications

• Architecture: Dual-node active-active controller pair
• Cache: Shared persistent cache across controller pair
• Host Interfaces: Supported via host bus adapters (FC, iSCSI, FCoE per configuration)
• Drive Interfaces: SAS 6Gb/s or 12Gb/s depending on 3PAR 8200 disk enclosure configuration
• RAID: HPE 3PAR RAID (RAID 1, 5, 6, 10) with ASIC acceleration
• Data Reduction: Inline deduplication and compression via HPE 3PAR OS

Performance Specifications

• IOPS: Up to 500,000 IOPS (all-flash configuration, 3PAR StoreServ 8200)
• Latency: Sub-millisecond (all-flash configuration)
• Throughput: Up to 4 GB/s aggregate (dual-controller)
• Cache Persistence: Battery-backed or supercapacitor-protected persistent write cache

Use Cases

• HPE 3PAR StoreServ 8200 controller node replacement for failed or end-of-life controller
• Spare controller procurement for HPE 3PAR 8200 high-availability storage environments
• Upgrading or refreshing HPE 3PAR StoreServ 8200 controller hardware
• Enterprise storage environments requiring block storage with deduplication and thin provisioning

Compatibility

• HPE 3PAR StoreServ 8200 storage arrays only — not compatible with 3PAR 7000, 9000, or 20000 series
• Requires matching HPE 3PAR OS version for controller replacement compatibility
• Controller replacement requires HPE 3PAR Service engagement for non-disruptive failover procedures
• Verify HPE 3PAR 8200 compatibility matrix and software version before controller replacement

Frequently Asked Questions

Can the HPE 3PAR StoreServ 8200 controller be replaced non-disruptively?

Yes — the HPE 3PAR StoreServ 8200 uses a dual-node active-active controller architecture where each controller handles I/O independently. A failed controller can be replaced non-disruptively while the surviving controller maintains full storage access. HPE strongly recommends engaging HPE support or a certified partner for controller replacement to ensure proper failover procedures and HPE 3PAR OS compatibility.

What HPE 3PAR OS version is required for the 809805-001 controller?

The 809805-001 controller requires an HPE 3PAR OS version compatible with the StoreServ 8200 platform. HPE 3PAR OS 3.3.1 and later are standard for the 8200 series. Always verify the HPE Single Point of Connectivity Knowledge (SPOCK) compatibility matrix and HPE 3PAR OS release notes for your specific 8200 configuration before ordering a replacement controller.

Is the HPE 3PAR StoreServ 8200 still supported by HPE?

HPE 3PAR StoreServ products have transitioned to HPE Alletra and Primera for new deployments. The 3PAR StoreServ 8200 may be in Mature or End of Support Life (EOSL) status depending on your support contract and HPE's product lifecycle schedule. Verify current support status via HPE's End of Life (EOL) product database, and contact HPE for post-warranty support options or migration planning to HPE Alletra storage platforms.

The HPE 809805-001 storage controller provides the core compute and data management intelligence for the HPE 3PAR StoreServ 8200 — enabling active-active dual-node controller redundancy, ASIC-accelerated data reduction, and high-performance block storage for enterprise environments requiring HPE 3PAR StoreServ 8200 controller replacement, spare procurement, or hardware refresh.
