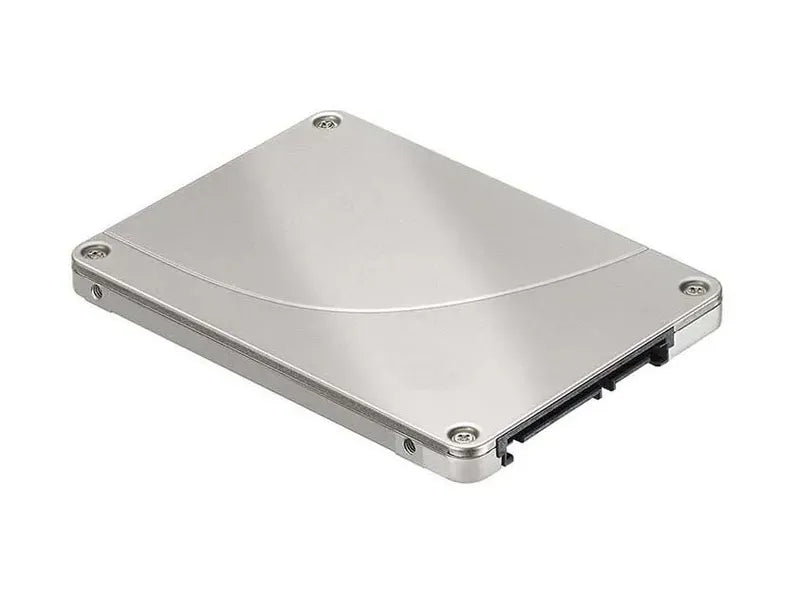

HPE P04119-001 960GB SATA 6Gb/s 3.5-inch Mixed Use SSD with Smart Carrier Converter

The HPE P04119-001 is a 960GB SATA 6Gb/s Mixed Use SSD in a 3.5-inch Large Form Factor (LFF) configuration with HPE Smart Carrier Converter and Digitally Signed Firmware — functionally equivalent to P03691-B21, providing 960GB SATA Mixed Use SSD storage in 3.5-inch LFF server bays as the HPE factory/OEM (-001) variant for HPE ProLiant servers with LFF-only drive configurations.

Key Features

• 960GB Mixed Use SATA SSD for balanced read/write workloads in 3.5-inch LFF HPE server bays
• 3.5-inch Smart Carrier Converter houses 2.5-inch SSD for LFF bay compatibility
• SATA 6Gb/s interface for broad HPE server backplane and controller compatibility
• HPE Digitally Signed Firmware for platform security and firmware authenticity verification
• HPE factory/OEM (-001) variant — equivalent to P03691-B21 option kit

Product Specifications

• Part Number: P04119-001
• Manufacturer: HP / HPE
• Capacity: 960GB
• Interface: SATA 6Gb/s
• Form Factor: 3.5-inch LFF (2.5-inch SSD in Smart Carrier Converter)
• Carrier: HPE Smart Carrier Converter (3.5-inch)
• Drive Type: Mixed Use SSD

Storage Specifications

• Interface Speed: SATA 6Gb/s (600 MB/s max)
• Sequential Read: Up to 550 MB/s
• Sequential Write: Up to 520 MB/s
• Firmware: HPE Digitally Signed
• Hot-Swap: Yes (Smart Carrier Converter)
• Endurance: Mixed Use — ~1-3 DWPD

Performance Specifications

• Workload Profile: Mixed Use (MU) — balanced ~60/40 read/write ratio
• DWPD: ~1-3 Drive Writes Per Day
• Random Read IOPS: Up to 95,000 IOPS
• Random Write IOPS: Up to 25,000 IOPS

Use Cases

• 960GB SATA SSD deployment in HPE ProLiant LFF-only server bays
• Mixed workload SATA SSD for virtualization, databases, and web servers in LFF configurations
• OEM factory procurement equivalent to P03691-B21 for 960GB LFF SATA Mixed Use SSD
• SSD modernization of HPE servers with only 3.5-inch LFF drive bays

Compatibility

• HPE ProLiant servers with 3.5-inch LFF SATA backplane bays
• Compatible with HPE Smart Array SATA controllers and SATA direct-connect backplanes
• Smart Carrier Converter adapts 2.5-inch SSD for LFF bays — verify server LFF bay compatibility
• Digitally Signed Firmware requires HPE server iLO for firmware verification

Frequently Asked Questions

What is the difference between P04119-001 and P03691-B21?

Both are HPE 960GB SATA 6Gb/s Mixed Use Digitally Signed SSDs with 3.5-inch Smart Carrier Converter for LFF server bays — functionally identical. P04119-001 is the HPE factory/OEM (-001) variant, while P03691-B21 is the standard HPE option kit (-B21). Both are fully interchangeable in supported HPE ProLiant LFF bay servers.

What is the difference between P04119-001 (Mixed Use) and P05313-001 (Read Intensive) at 960GB?

Both are HPE 960GB SATA 6Gb/s Digitally Signed SSDs, but P04119-001 is in 3.5-inch LFF Smart Carrier Converter for LFF bays with Mixed Use endurance (~1-3 DWPD), while P05313-001 is in 2.5-inch SFF Smart Carrier for SFF bays with Read Intensive endurance (~1 DWPD). Select based on your server's bay form factor and workload write intensity.

Can the 3.5-inch Smart Carrier Converter SSD be used in rack servers without LFF bays?

No — the 3.5-inch Smart Carrier Converter is specifically designed for 3.5-inch LFF drive bays. It cannot be installed in 2.5-inch SFF drive bays. For servers with SFF bays, use 2.5-inch SSD variants (P05313-001 for Gen8-Gen10 or P41523-001 for Gen10+/Gen11). The Smart Carrier Converter allows 2.5-inch SSD technology to be deployed in LFF-only server configurations.

The HPE P04119-001 delivers 960GB of SATA 6Gb/s Mixed Use SSD capacity with Digitally Signed Firmware and 3.5-inch Smart Carrier Converter as the OEM factory variant of P03691-B21 — enabling Mixed Use SSD deployment in HPE ProLiant servers with LFF-only drive bays, providing balanced read/write performance and hot-swap convenience for virtualization, database, and mixed workload applications.
