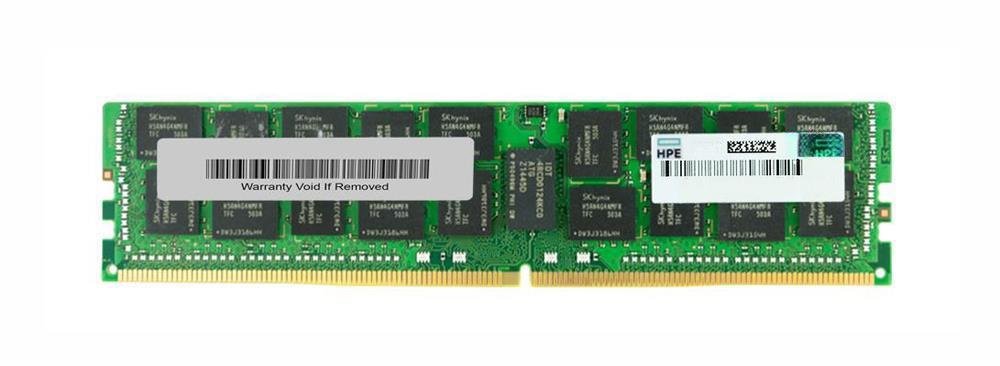

HPE 64GB DDR4-2933 ECC Load Reduced DIMM — P00926-B21

The HPE P00926-B21 is a 64GB DDR4-2933 (PC4-23466) ECC Load Reduced DIMM (LRDIMM) in a quad-rank 4Rx4 configuration for HPE ProLiant Gen10 servers. Operating at 1.2V with CL21 latency, the load-reduced buffer allows higher rank counts per channel, enabling maximum memory density configurations in memory-intensive enterprise deployments.

Key Features

• 64GB quad-rank LRDIMM — load-reduced architecture for maximum memory density per channel
• 2933MHz (PC4-23466) bandwidth for Intel Xeon Scalable Cascade Lake Gen10 platforms
• Load-reduced buffer enables higher DIMM population than standard RDIMMs
• 1.2V energy-efficient operation with full ECC protection across 288-pin interface

Product Specifications

• Part Number: P00926-B21
• Manufacturer: HPE
• Capacity: 64GB
• Type: DDR4 ECC Load Reduced (LRDIMM)
• Speed: 2933MHz (PC4-23466)
• CAS Latency: CL21
• Voltage: 1.2V
• Ranks x Width: 4Rx4
• Pins: 288-pin

Memory Specifications

• Memory Standard: JEDEC DDR4-2933
• Error Correction: ECC (Error Correcting Code)
• Buffer Type: Load Reduced (LRDIMM)
• DRAM Generation: DDR4

Performance Specifications

• Peak Bandwidth: ~46.9 GB/s (PC4-23466)
• ECC Type: Single-bit error correction, multi-bit error detection
• RAS Features: Advanced ECC, memory mirroring, rank sparing (platform dependent)

Use Cases

• HPE ProLiant Gen10 maximum-capacity memory configurations using LRDIMMs
• In-memory databases (SAP HANA, Oracle IMDB) requiring maximum RAM density
• Large-scale VMware/Hyper-V virtualization hosts with high VM density per server
• HPC and AI/ML workloads requiring 64GB per slot at DDR4-2933 speeds

Compatibility

• HPE ProLiant DL380 Gen10, DL360 Gen10, DL560 Gen10
• HPE ProLiant ML350 Gen10, BL460c Gen10
• Intel Xeon Scalable 2nd Generation (Cascade Lake) supporting DDR4-2933 LRDIMM

Frequently Asked Questions

What is the difference between P00926-B21 (LRDIMM) and P03054-791 (RDIMM) for the same 64GB capacity?

P00926-B21 is an LRDIMM using a load-reducing buffer that lowers electrical load on the memory bus, enabling higher population density. P03054-791 is an RDIMM — RDIMMs generally offer slightly lower latency but may be limited at full channel population. Consult HPE QuickSpecs for max population per type.

Can P00926-B21 LRDIMMs be mixed with RDIMMs in the same server?

No — mixing LRDIMM and RDIMM types in the same server is not supported. All installed DIMMs must be of the same type across all channels.

Is P00926-B21 compatible with HPE ProLiant Gen9?

No — DDR4-2933 is a Gen10 specification. Gen9 platforms support DDR4-2133 or DDR4-2400 and are not compatible with this module.

The HPE P00926-B21 64GB DDR4-2933 LRDIMM delivers maximum-density ECC server memory for HPE ProLiant Gen10 deployments. Order today — in stock at the lowest price with fast shipping.
