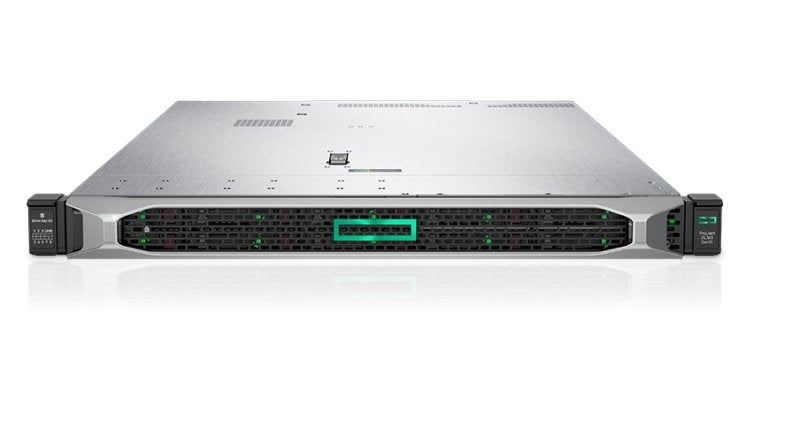

HP ProLiant DL360 Gen10 Intel Xeon Gold 1U Rack Server

The HP ProLiant DL360 Gen10 (874461-S01) is a high-density 1U rack server powered by Intel Xeon Gold processors, purpose-built for compute-intensive workloads including virtualization, cloud infrastructure, and enterprise applications requiring maximum performance per rack unit.

Key Features

• Intel Xeon Gold dual-socket scalable processor support for high core density
• 1U rack form factor maximizing compute density in space-constrained data centers
• DDR4-2933 ECC RDIMM/LRDIMM/NVDIMM memory across 24 DIMM slots
• HPE iLO 5 for advanced remote management and infrastructure automation
• Flexible SFF/LFF storage and PCIe 3.0 expansion for diverse workload requirements

Product Specifications

• Part Number: 874461-S01
• Manufacturer: HP / HPE
• Form Factor: 1U Rack Server
• CPU Socket: Dual LGA3647 (Intel Xeon Scalable)
• CPU Support: Intel Xeon Gold (2nd Gen Scalable)
• Memory Type: DDR4 ECC RDIMM / LRDIMM / NVDIMM
• Memory Slots: 24 x DIMM

Component Specifications

• Max Memory: 3TB (with LRDIMMs)
• Max Memory Speed: DDR4-2933
• Storage Bays: Up to 10 x SFF or 4 x LFF (configuration dependent)
• PCIe Slots: 3 x PCIe 3.0 (x16/x8/x8)
• Network: 2 x 10GbE (embedded FlexibleLOM)
• Power Supply: Hot-plug redundant (500W/800W/1600W options)
• Management: HPE iLO 5 (dedicated management port)

Use Cases

• VMware vSphere and Microsoft Hyper-V virtualization host with high VM density
• Enterprise database servers requiring scalable CPU and memory headroom
• Cloud-native application hosting in private or hybrid cloud environments
• HPC and compute-intensive workloads requiring Xeon Gold multi-core performance

Compatibility

• Compatible with Intel Xeon Gold and Platinum 2nd Gen Scalable processors
• Supports HPE Smart Array controllers for SAS/SATA RAID storage management
• Managed via HPE OneView and iLO 5 for data center automation
• Certified for VMware vSphere, Red Hat Enterprise Linux, and Windows Server

Frequently Asked Questions

What Intel Xeon processors are compatible with the DL360 Gen10?

The DL360 Gen10 (874461-S01) supports Intel Xeon Scalable Gold and Platinum 2nd Gen processors (Cascade Lake) in dual-socket configuration.

What is the difference between 874461-S01 and 874461-B21?

The -S01 suffix typically denotes a Smart Buy (preconfigured/value bundle) variant, while -B21 is the standard CTO (Configure to Order) base option. Core server platform is identical.

Does the DL360 Gen10 support NVMe storage?

Yes — select DL360 Gen10 configurations support NVMe drives via PCIe or HPE NVMe-capable SFF drive bays, depending on the storage backplane configuration ordered.

The HP ProLiant DL360 Gen10 874461-S01 stands as one of the most proven platforms in enterprise compute — combining Intel Xeon Gold scalability, 24-DIMM memory capacity, and HPE's comprehensive management ecosystem into a 1U server engineered for the demands of modern virtualization, cloud, and database workloads.
