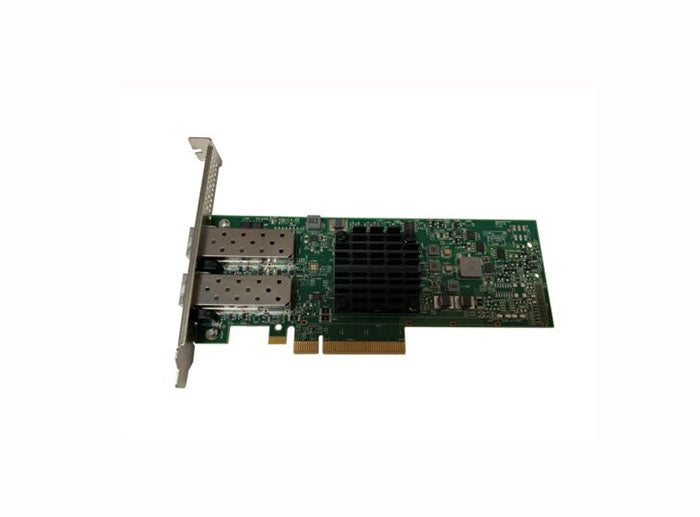

HP Ethernet 10/25GbE 2-Port 631SFP28 Network Adapter — 817716-001

The HP 817716-001 is a dual-port 10/25GbE network adapter based on the 631SFP28 chipset, designed for HPE ProLiant Gen9 and Gen10 servers. Using SFP28 transceivers, it delivers flexible 10GbE or 25GbE connectivity for high-bandwidth data center networking, storage traffic, and virtualized workloads requiring low-latency NIC performance.

Key Features

• Dual-port 10/25GbE SFP28 — flexible speed selection for data center network deployments
• 631SFP28 chipset delivering low-latency, high-throughput server networking
• SFP28 form factor supports direct-attach copper (DAC) and optical transceivers
• PCIe host interface for HPE ProLiant Gen9/Gen10 server platforms

Product Specifications

• Part Number: 817716-001
• Manufacturer: HP / HPE
• Ports: 2x SFP28
• Speed: 10GbE / 25GbE per port
• Chipset: 631SFP28
• Form Factor: PCIe Adapter
• Connector: SFP28

Interface Specifications

• Host Interface: PCIe (Gen3 x8)
• Port Type: SFP28 (compatible with SFP+ at 10GbE)
• Supported Speeds: 10Gbps, 25Gbps
• Cable Support: DAC (Direct Attach Copper), Active Optical Cable (AOC), SFP28 optical transceivers

Network & Protocol Specifications

• Standards: IEEE 802.3by (25GbE), IEEE 802.3ae (10GbE)
• Flow Control: IEEE 802.3x
• Jumbo Frames: Supported
• Offload: TCP/UDP/IP checksum offload, LSO, RSS

Use Cases

• High-bandwidth server-to-switch connectivity at 25GbE in modern data centers
• NVMe-oF and iSCSI storage network traffic requiring low-latency dual-port NIC
• VMware ESXi and Hyper-V virtual switch uplinks for high-density VM environments
• 10GbE legacy compatibility with 25GbE upgrade path using same SFP28 ports

Compatibility

• HPE ProLiant DL380 Gen9/Gen10, DL360 Gen9/Gen10, DL560 Gen10
• HPE ProLiant ML350 Gen9/Gen10 and other PCIe Gen3 ProLiant platforms
• Compatible with HPE and third-party SFP28/SFP+ DAC cables and optical transceivers

Frequently Asked Questions

What transceivers are compatible with the 817716-001 SFP28 ports?

The 817716-001 supports SFP28 (25GbE) and SFP+ (10GbE) transceivers, including HPE-branded DAC cables, AOCs, and optical SFP28 modules. Third-party transceiver compatibility varies — HPE-branded transceivers are recommended for full support.

Is 817716-001 compatible with 10GbE switches?

Yes — the SFP28 ports are backward compatible with 10GbE SFP+ infrastructure, allowing connection to existing 10GbE top-of-rack switches while enabling a future upgrade to 25GbE.

Does 817716-001 support SR-IOV for virtualization?

SR-IOV support depends on the firmware version and host OS driver. Consult HPE QuickSpecs and the server's virtualization platform documentation for SR-IOV configuration details.

The HP 817716-001 dual-port 10/25GbE 631SFP28 network adapter delivers flexible, high-bandwidth connectivity for HPE ProLiant server platforms. Order today — in stock at a competitive price.
