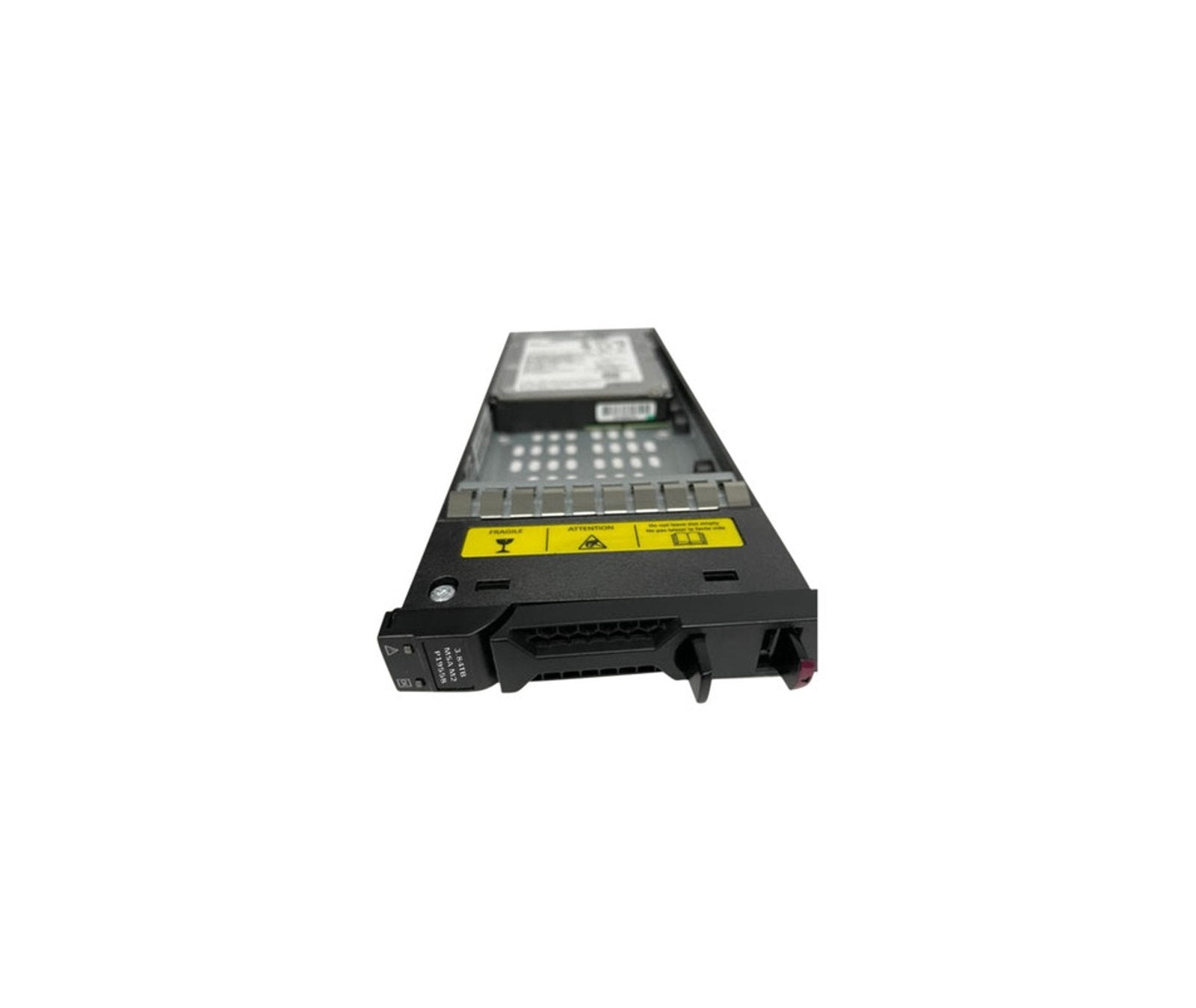

HPE P19558-001 3.84TB SAS 12Gb/s Read Intensive 2.5-inch SSD with Tray for MSA

The HPE P19558-001 is a 3.84TB SAS 12Gb/s Read Intensive 2.5-inch SSD with HPE MSA tray — providing high-capacity read-optimized SAS SSD storage specifically certified for HPE MSA (Modular Smart Array) storage systems, delivering enterprise-grade SSD performance in MSA arrays for read-intensive workloads including web serving, virtual desktop, and read-heavy database applications.

Key Features

• 3.84TB high-capacity Read Intensive SAS SSD for HPE MSA storage array deployments
• SAS 12Gb/s dual-port interface for redundant, high-bandwidth MSA storage connectivity
• MSA tray included — specifically certified and configured for HPE MSA array installation
• Read Intensive class — optimized for workloads with 70%+ read access patterns
• HPE-certified for MSA storage arrays with full HPE support coverage

Product Specifications

• Part Number: P19558-001
• Manufacturer: HP / HPE
• Capacity: 3.84TB
• Interface: SAS 12Gb/s
• Form Factor: 2.5-inch SFF with MSA Tray
• Drive Type: Read Intensive SSD
• Target System: HPE MSA Storage Arrays

Storage Specifications

• Interface Speed: 12Gb/s SAS (dual-port)
• Sequential Read: Up to 2,100 MB/s
• Sequential Write: Up to 1,000 MB/s
• Endurance: Read Intensive — ~1 DWPD
• Hot-Swap: Yes (MSA tray)
• MTBF: 2.0 million hours

Performance Specifications

• Workload Profile: Read Intensive (RI) — 70%+ read ratio
• DWPD: ~1 Drive Write Per Day
• Random Read IOPS: Up to 400,000 IOPS
• Random Write IOPS: Up to 80,000 IOPS

Use Cases

• 3.84TB high-capacity Read Intensive SSD for HPE MSA 1060, 2060, and 2062 storage arrays
• Virtual desktop infrastructure (VDI) storage requiring high read IOPS at 3.84TB density
• Read-heavy database query, analytics, and content delivery in HPE MSA environments
• Cost-efficient all-flash MSA deployment using Read Intensive SSDs for read-dominant workloads

Compatibility

• HPE MSA 1060, MSA 2060, and MSA 2062 storage arrays (verify per MSA model QuickSpecs)
• MSA tray format — not compatible with ProLiant Smart Carrier or Basic Carrier server bays
• Requires SAS 12Gb/s MSA controller module for full SAS dual-port connectivity
• Verify HPE MSA storage compatibility matrix before ordering

Frequently Asked Questions

What is the difference between an MSA tray SSD and a ProLiant Smart Carrier SSD?

HPE MSA tray SSDs (like P19558-001) are designed specifically for HPE MSA storage array drive bays, using an MSA-specific tray form factor. ProLiant Smart Carrier SSDs are designed for HPE ProLiant server drive bays. The trays are not mechanically interchangeable — an MSA tray SSD cannot be installed in a ProLiant server bay without a carrier adapter, and vice versa. Always order the appropriate tray format for your target system.

Why is SAS preferred over SATA for HPE MSA storage arrays?

HPE MSA arrays use SAS as the primary drive interface because SAS provides dual-port redundancy — two independent data paths to each drive — enabling non-disruptive path failover and multipath I/O. This is critical in shared storage arrays serving multiple hosts simultaneously. SAS also provides higher sustained IOPS and bandwidth for multi-host workloads compared to single-port SATA drives.

Can Read Intensive SSDs be mixed with Mixed Use SSDs in the same HPE MSA array?

HPE MSA storage arrays generally support mixing drive types, but within a disk group (RAID set), all drives should be of the same type and capacity for optimal performance and warranty support. You can create separate disk groups using RI SSDs for read-heavy volumes and MU SSDs for write-intensive volumes within the same MSA array, allowing workload-optimized storage tiers on a single array platform.

The HPE P19558-001 delivers 3.84TB of SAS 12Gb/s Read Intensive SSD capacity in an MSA tray configuration — providing high-capacity read-optimized SAS SSD storage certified for HPE MSA storage arrays, enabling all-flash or hybrid MSA deployments for VDI, read-heavy databases, and analytics workloads requiring high read IOPS and 3.84TB per-slot capacity in HPE MSA environments.
