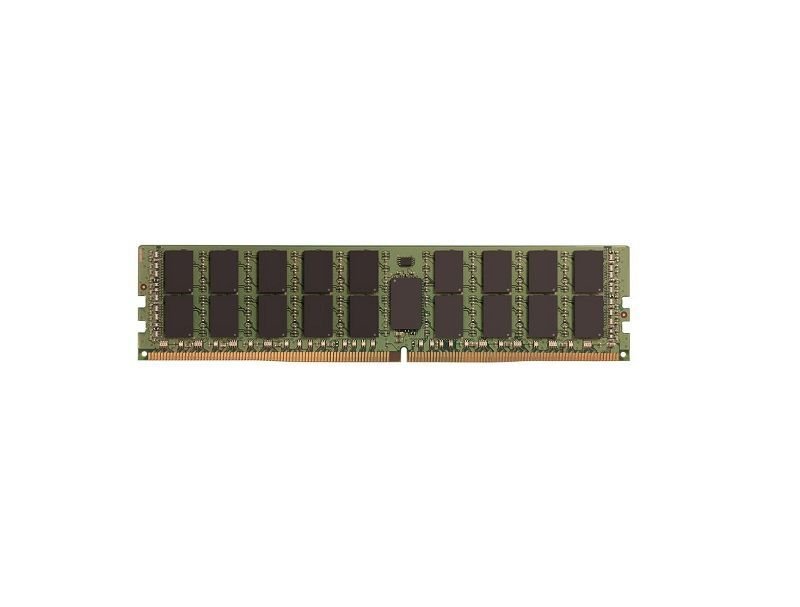

HPE 128GB DDR4-2400 ECC Load Reduced DIMM — 819415-001

The HPE 819415-001 is a 128GB DDR4-2400 (PC4-19200) ECC Load Reduced DIMM spare part in an octal-rank 8Rx4 configuration for HPE ProLiant Gen9 servers. Carrying the -001 spare designation, it is the field service replacement version of the 809208-B21 option kit, sharing identical 1.2V, CL20, 288-pin LRDIMM specifications.

Key Features

• 128GB 8Rx4 LRDIMM spare — field replacement designation for Gen9 ProLiant service workflows
• DDR4-2400 (PC4-19200) octal-rank load-reduced architecture for maximum per-slot capacity
• ECC and LRDIMM buffer for enterprise-grade error correction at extreme memory density
• 1.2V 288-pin DDR4 for energy-efficient maximum-capacity Gen9 memory configurations

Product Specifications

• Part Number: 819415-001
• Manufacturer: HPE
• Capacity: 128GB
• Type: DDR4 ECC Load Reduced (LRDIMM)
• Speed: 2400MHz (PC4-19200)
• CAS Latency: CL20
• Voltage: 1.2V
• Ranks x Width: 8Rx4
• Pins: 288-pin

Memory Specifications

• Memory Standard: JEDEC DDR4-2400
• Error Correction: ECC (Error Correcting Code)
• Buffer Type: Load Reduced (LRDIMM)
• DRAM Generation: DDR4

Performance Specifications

• Peak Bandwidth: ~38.4 GB/s (PC4-19200)
• ECC Type: Single-bit error correction, multi-bit error detection
• RAS Features: Advanced ECC, memory mirroring, patrol scrubbing (platform dependent)

Use Cases

• HPE ProLiant Gen9 spare parts inventory for 128GB DDR4-2400 LRDIMM field replacements
• Service depot and data center maintenance workflows for Gen9 memory module swaps
• Maximum-density Gen9 memory rebuild after drive or DIMM failure in production systems
• Cost-effective spare part procurement for HPE ProLiant Gen9 high-memory configurations

Compatibility

• HPE ProLiant DL380 Gen9, DL560 Gen9, DL580 Gen9
• HPE ProLiant BL460c Gen9 and LRDIMM-capable Gen9 Xeon E5-2600 v3/v4 platforms
• Interchangeable with 809208-B21 and 809086-091 in supported Gen9 configurations

Frequently Asked Questions

Is 819415-001 interchangeable with 809208-B21 and 809086-091?

Yes — all three are HPE 128GB DDR4-2400 8Rx4 ECC LRDIMM modules with identical specifications for ProLiant Gen9. 819415-001 is the spare part, 809208-B21 is the option kit, and 809086-091 is the factory/OEM variant — all are functionally interchangeable.

Where can I find the HPE spare part number on installed memory modules?

The HPE spare part number is printed on the DIMM label alongside the option part number. In some cases it can also be retrieved via HPE iLO (Integrated Lights-Out) memory inventory reports.

How many 819415-001 modules can be installed in a DL580 Gen9?

The DL580 Gen9 supports up to 96 DIMM slots across 4 processor sockets. At 128GB per slot with 819415-001, theoretical maximum capacity is 12TB. Consult HPE ProLiant DL580 Gen9 QuickSpecs for validated LRDIMM population rules.

The HPE 819415-001 128GB DDR4-2400 LRDIMM spare delivers maximum-density field-replacement memory for HPE ProLiant Gen9 platforms. Order today — in stock at the best price.
