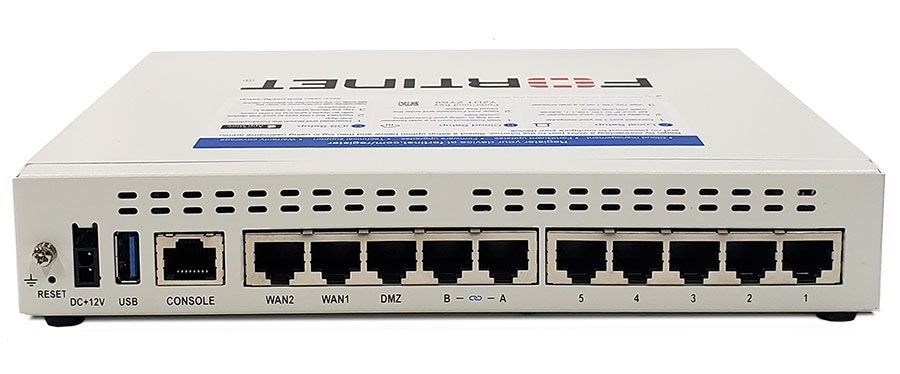

Fortinet FortiGate 70F 10-Port Gigabit Firewall Appliance

The Fortinet FortiGate 70F is a compact next-generation firewall (NGFW) purpose-built for small to mid-size businesses and branch office deployments. Powered by Fortinet's proprietary SPU NP7Lite and CP9 security processors, it delivers hardware-accelerated threat protection, SSL inspection, and SD-WAN capabilities in a desktop form factor.

Key Features

• 10x 1GbE RJ-45 ports for flexible LAN/WAN segmentation
• Hardware-accelerated NGFW with NP7Lite and CP9 security processors
• Integrated SD-WAN for intelligent WAN path selection
• FortiOS with unified security fabric management
• Compact desktop form factor for branch and SMB deployments

Product Specifications

• Part Number: FG-70F
• Manufacturer: Fortinet
• OEM Status: OEM
• Model: FortiGate 70F
• Ports: 10x 1GbE RJ-45
• Security Processors: NP7Lite + CP9
• Form Factor: Desktop
• Storage: 128GB SSD (built-in)

Communication Specifications

• Firewall Throughput: 10 Gbps
• NGFW Throughput: 1 Gbps
• Threat Protection Throughput: 700 Mbps
• SSL Inspection Throughput: 900 Mbps
• IPsec VPN Throughput: 6.5 Gbps
• Max Concurrent Sessions: 1.5 million
• New Sessions/sec: 35,000

Use Cases

• SMB perimeter firewall with integrated IPS and application control
• Branch office NGFW with SD-WAN for multi-WAN failover
• Secure remote access via SSL and IPsec VPN
• Unified threat management for retail and healthcare environments

Compatibility

• Managed via FortiManager and integrated with Fortinet Security Fabric
• Supports FortiGuard subscription services (IPS, AV, Web Filtering, Sandbox)
• Compatible with FortiAP wireless APs for unified wired/wireless management

Frequently Asked Questions

Does the FG-70F require a FortiGuard subscription?

The hardware functions without a subscription, but threat protection features (IPS, AV, Web Filtering) require active FortiGuard licenses for signature updates.

Does it support HA (High Availability)?

Yes — the FortiGate 70F supports Active-Passive HA clustering for redundancy.

What is the difference between FG-70F and FG-70F-BDL?

The FG-70F is hardware only. BDL bundles include FortiGuard subscription licenses — choose based on whether you need bundled security services.

The Fortinet FortiGate 70F delivers enterprise-grade security in a compact, affordable package. Order today and protect your network with hardware-accelerated next-generation firewall performance.
