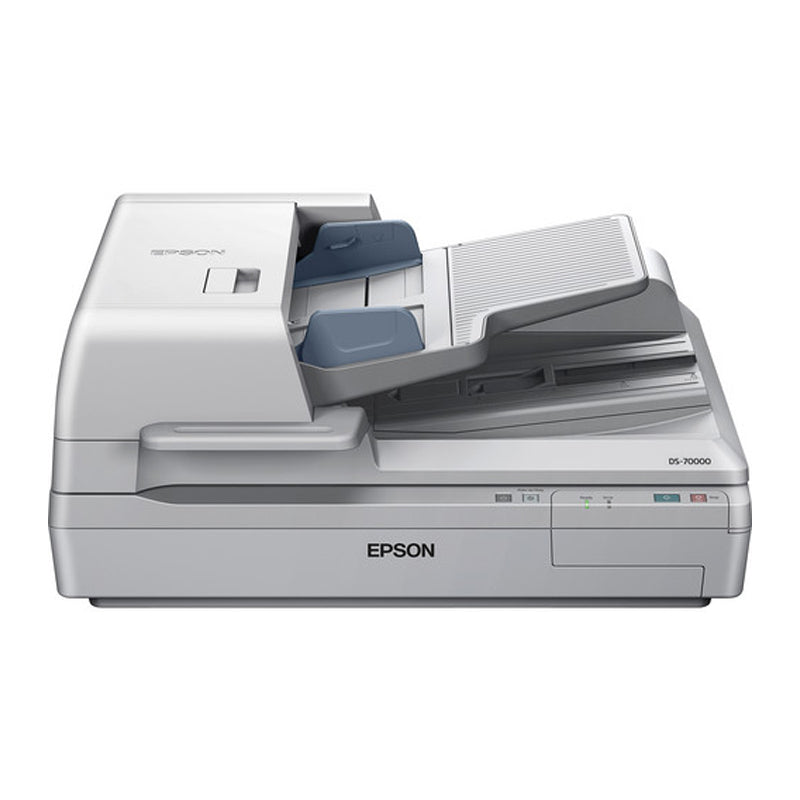

Epson WorkForce DS-70000 Color Sheetfed Document Scanner — B11B204321

The Epson WorkForce DS-70000 (B11B204321) is a high-performance, high-volume desktop document scanner engineered for enterprise workgroups, document management centers, and production scanning environments. With a blazing 70 ppm / 140 ipm duplex scan speed, 600 x 600 dpi optical resolution, a 200-sheet automatic document feeder (ADF), and USB connectivity, it handles large daily scanning volumes with exceptional throughput and image quality. Designed for reliability and precision, the DS-70000 is built to digitize contracts, invoices, records, and multi-page documents at production scale.

Key Specifications

• Part Number / MPN: B11B204321
• Model: DS-70000
• Manufacturer: Epson
• Product Line: WorkForce
• Scanner Type: Sheetfed ADF (Automatic Document Feeder)
• Scan Speed (Simplex): Up to 70 ppm (pages per minute)
• Scan Speed (Duplex): Up to 140 ipm (images per minute)
• Optical Resolution: 600 x 600 dpi
• ADF Capacity: Up to 200 sheets
• Duplex Scanning: Yes — automatic single-pass duplex
• Interface: USB 3.0
• Form Factor: Desktop

Scan Performance

• Simplex Speed: Up to 70 ppm (200 dpi, color/grayscale/black & white)
• Duplex Speed: Up to 140 ipm (200 dpi)
• Optical Resolution: 600 x 600 dpi
• Output Resolution: 75–1200 dpi (selectable)
• Color Depth: 48-bit input / 24-bit output (color); 16-bit input / 8-bit output (grayscale)
• Scan Area (Max): 12 x 17 inches (A3 capable with optional flatbed)
• Daily Duty Cycle: Up to 10,000 sheets per day

Document Handling

• ADF Capacity: Up to 200 sheets
• Supported Paper Sizes: Business cards up to 12 x 17 inches (A3)
• Paper Weight: 27–413 g/m² (standard documents to heavy card stock)
• Duplex: Yes — single-pass automatic duplex (both sides in one pass)
• Mixed Batch Scanning: Yes — scans mixed document sizes and weights in a single batch
• Long Document Mode: Yes — up to 220 inches
• Ultrasonic Double-Feed Detection: Yes
• Staple Detection: Yes

Image Processing

• Automatic color detection (color/grayscale/B&W per page)
• Blank page removal
• Auto deskew and auto crop
• Text enhancement and background removal
• JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF output formats
• Compatible with TWAIN and ISIS drivers for integration with document management software

Connectivity

• Interface: USB 3.0 (USB 2.0 compatible)
• Driver Support: TWAIN, ISIS, WIA
• Software Included: Epson Scan 2, Document Capture Pro (Windows), Document Capture (Mac)

Physical & Environmental

• Dimensions: Approx. 12.8 x 7.3 x 8.1 inches (with ADF closed)
• Weight: Approx. 19.8 lbs (9.0 kg)
• Operating Temperature: 50°F to 95°F (10°C to 35°C)
• Power Consumption (Operating): Approx. 75W
• ENERGY STAR certified

Compatibility

• Compatible with Windows 7, 8.1, 10, 11 (32/64-bit)
• Compatible with macOS 10.13 or later
• TWAIN and ISIS driver support for integration with: Kofax Capture, Adobe Acrobat, PaperStream IP, DocuWare, SharePoint, and other DMS platforms
• Ideal for legal, healthcare, finance, government, and enterprise document management deployments
