Dell OptiPlex 9020 SFF LGA1150 DDR3 System Board

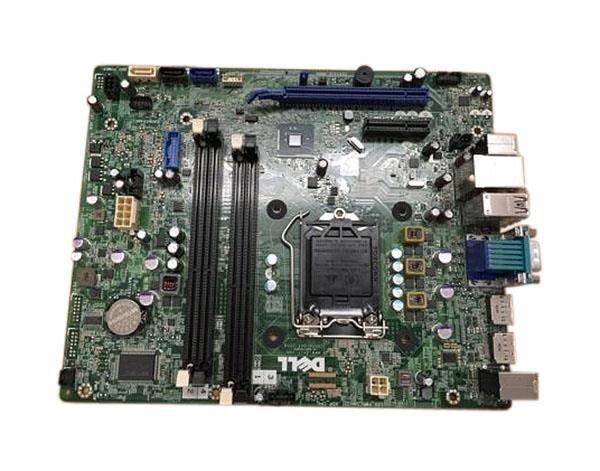

The Dell XCR8D is an OEM replacement system board (motherboard) for the Dell OptiPlex 9020 Small Form Factor desktop, featuring an LGA1150 socket for 4th Gen Intel Core processors and DDR3 memory support — a direct drop-in solution for system board repair or replacement.

Key Features

• LGA1150 socket supporting Intel 4th Gen Core i3/i5/i7 (Haswell) processors
• DDR3/DDR3L memory support across multiple DIMM slots
• Dell OptiPlex 9020 SFF form factor — direct OEM replacement
• Integrated Intel HD Graphics with DisplayPort and VGA outputs
• Intel Q87 Express chipset for enterprise management features

Product Specifications

• Part Number: XCR8D
• Manufacturer: Dell
• Socket: LGA1150
• CPU Support: Intel 4th Gen Core i3/i5/i7 (Haswell)
• Chipset: Intel Q87 Express
• Memory Type: DDR3 / DDR3L
• Form Factor: Dell OptiPlex 9020 SFF proprietary

Component Specifications

• Memory Slots: 4 x DIMM (DDR3/DDR3L, up to 32GB)
• Max Memory Speed: DDR3-1600
• Integrated Graphics: Intel HD Graphics 4600
• Display Outputs: DisplayPort, VGA (integrated)
• PCIe Slots: 1 x PCIe x16, 1 x PCIe x1 (SFF config)
• Storage: 4 x SATA 6Gb/s ports
• Management: Intel AMT (vPro, model dependent)

Use Cases

• System board replacement for failed Dell OptiPlex 9020 SFF desktops
• IT department spare board stock for OptiPlex 9020 SFF fleet maintenance
• Refurbishment of Dell OptiPlex 9020 SFF units for resale or redeployment
• Component-level repair of corporate desktop environments

Compatibility

• Direct OEM replacement for Dell OptiPlex 9020 SFF desktop only
• Compatible with Intel 4th Gen (Haswell) LGA1150 processors
• Supports DDR3 and DDR3L UDIMMs up to DDR3-1600
• Not compatible with OptiPlex 9020 MT (Mini Tower) or 9020 AIO form factors

Frequently Asked Questions

Is XCR8D compatible with the OptiPlex 9020 Mini Tower?

No — the XCR8D is specifically designed for the OptiPlex 9020 SFF (Small Form Factor). The Mini Tower uses a different board with a different mounting layout.

Does this board support Intel vPro / AMT?

Intel AMT support depends on the specific processor installed. The Q87 chipset is vPro-capable, but the processor must also be a vPro-enabled SKU for full AMT functionality.

Can I use DDR3L memory with the XCR8D?

Yes — the board supports both standard DDR3 (1.5V) and low-voltage DDR3L (1.35V) memory modules.

The Dell XCR8D provides a reliable, OEM-grade system board solution for extending the operational life of OptiPlex 9020 SFF deployments — reducing total replacement costs while maintaining full hardware compatibility with existing processors, memory, and storage.
