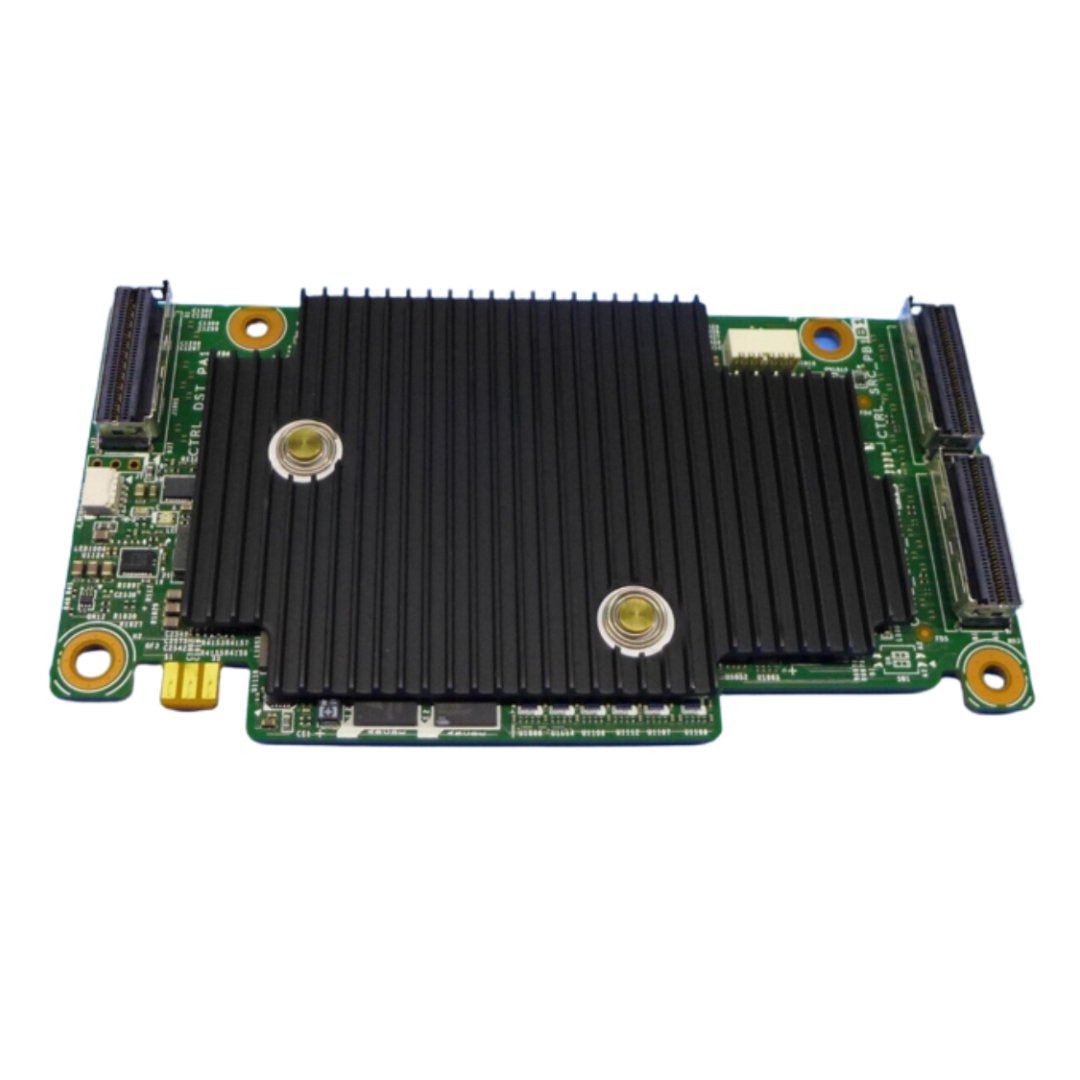

Dell PERC H755n 16-Port PCIe 4.0 x8 Low Profile RAID Controller — 9K2C2

The Dell PERC H755n (9K2C2) is a genuine OEM 16-port PCI-Express 4.0 x8 low-profile RAID controller designed for Dell PowerEdge servers. Supporting RAID levels 0, 1, 5, 6, 10, 50, and 60, it delivers high-performance hardware RAID with PCIe Gen4 bandwidth for demanding enterprise server storage environments. The H755n is the non-cache (NV cache) variant of the PERC H755 family.

Key Features

• 16 internal SAS/SATA ports for high-density server storage connectivity
• PCI-Express 4.0 x8 host interface for maximum Gen4 bandwidth
• Supports RAID 0, 1, 5, 6, 10, 50, and 60
• Genuine Dell OEM PERC H755n — designed for Dell PowerEdge servers
• Low-profile form factor for space-constrained server slots
• PCIe Gen4 for next-generation storage performance

Product Specifications

• Part Number: 9K2C2
• Manufacturer: Dell
• Model: PERC H755n
• OEM Status: Genuine Dell OEM
• Host Interface: PCI-Express 4.0 x8
• Internal Ports: 16
• RAID Levels: 0, 1, 5, 6, 10, 50, 60
• Form Factor: Low Profile
• Compatible Systems: Dell PowerEdge servers

Interface Specifications

• Host Interface: PCI-Express 4.0 x8
• Internal Ports: 16 (SAS/SATA)
• Form Factor: Low Profile PCIe
• Compatible Slots: PCIe x8, x16

RAID & Performance Specifications

• Supported RAID Levels: 0, 1, 5, 6, 10, 50, 60
• Cache: NV cache (non-volatile)
• OS Support: Windows Server, Linux, VMware ESXi
• Management: Dell OpenManage, PERC BIOS utility
• Compatible Systems: Dell PowerEdge 15th Gen and later servers

Use Cases

• High-performance hardware RAID for Dell PowerEdge server storage
• RAID 5/6/60 data protection for enterprise application storage
• High-density 16-port SAS/SATA storage connectivity
• Dell PowerEdge server storage controller upgrade or replacement

Compatibility

• Compatible with Dell PowerEdge 15th Generation and later servers
• Genuine Dell OEM — ensures full compatibility with Dell server firmware and iDRAC
• Supports Windows Server, Linux, and VMware ESXi
• Verify compatibility with your specific PowerEdge model before ordering

Frequently Asked Questions

What is the difference between PERC H755 and PERC H755n?

The PERC H755 includes a supercapacitor-backed cache for write-back caching, while the PERC H755n (9K2C2) uses NV cache without the supercapacitor — making it suitable for environments where write-back cache protection is handled differently.

What RAID levels does the Dell PERC H755n support?

The Dell PERC H755n supports RAID levels 0, 1, 5, 6, 10, 50, and 60 for comprehensive data protection and performance configurations.

Is the PERC H755n compatible with VMware ESXi?

Yes, the Dell PERC H755n is supported by VMware ESXi with Dell-provided drivers, making it suitable for virtualization host storage in Dell PowerEdge environments.

The Dell PERC H755n (9K2C2) is a high-performance 16-port PCIe 4.0 RAID controller built for Dell PowerEdge server storage with comprehensive RAID level support. Order today for genuine Dell PERC Gen4 RAID performance.
