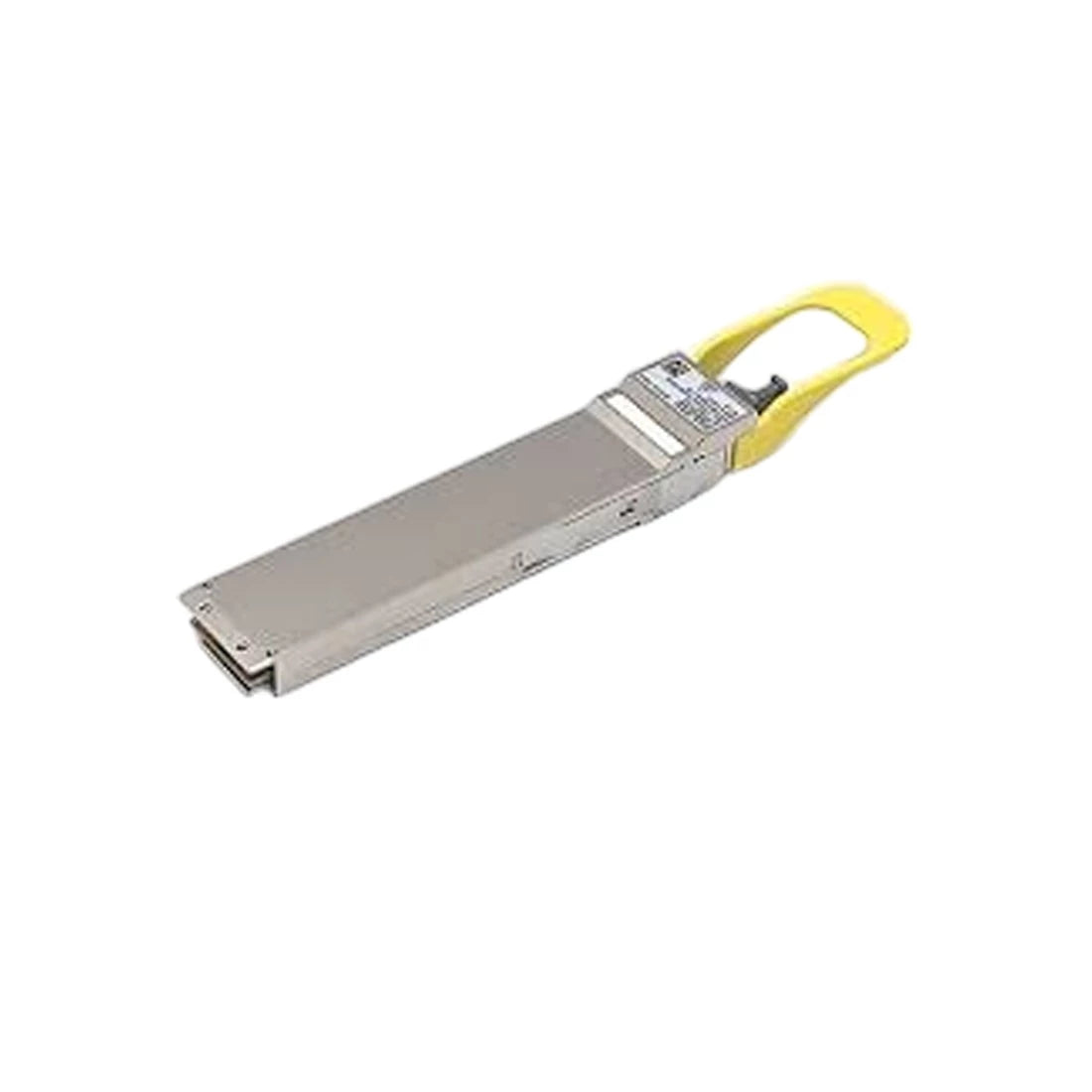

Dell NVIDIA 400Gbps Single-port OSFP 400Gb/s single mode DR4 Transceiver - 1N8TG

Dell NVIDIA 400Gbps Single-port OSFP 400Gb/s single mode DR4 Transceiver - 1N8TG

Part Number: 1N8TG
Manufacturer: Dell

Condition: New

Weight: 2.0 lbs

Availability: In stock

Regular price $873.75
Regular price Sale price $873.75
Shipping calculated at checkout.
Delivery Car

Fast Delivery

Return Icon

Easy Returns

Features Icon

Free USA Shipping <10 lbs

Warranty Icon

Safe payment

We accept purchase orders from fortune 1000 Companies, government agencies, defence, Schools, and hospitals. For more details, contact us at (800) 504-1875 or simply submit Request for Quote form. Our Sales Team will prompt respond with a best solution tailored to your needs.

  • American Express
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Request For Quote

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Dell NVIDIA 400Gbps OSFP 400GBASE-DR4 Single-Mode Transceiver — 1N8TG

The Dell 1N8TG is a 400Gbps single-port OSFP (Octal Small Form-factor Pluggable) transceiver supporting the 400GBASE-DR4 standard over single-mode fiber. Designed for use with NVIDIA (Mellanox) ConnectX and Spectrum switch platforms, this transceiver delivers ultra-high-bandwidth connectivity for hyperscale data centers, AI/ML clusters, and high-performance computing fabrics. With a reach of up to 500m over SMF, it bridges top-of-rack and end-of-row switching with exceptional signal integrity.

Key Specifications

  • Part Number / MPN: 1N8TG
  • Form Factor: OSFP (Octal Small Form-factor Pluggable)
  • Data Rate: 400Gbps (4x100G PAM4 lanes)
  • Standard: 400GBASE-DR4
  • Fiber Type: Single-Mode Fiber (SMF)
  • Connector: MPO-12 (male)
  • Wavelength: 1310nm (per lane)

Performance & Range

  • Max Reach: Up to 500m over OS2 single-mode fiber
  • Lane Count: 4 TX / 4 RX lanes
  • Modulation: PAM4
  • Data Rate per Lane: 100Gbps
  • Aggregate Data Rate: 400Gbps

Optical Specifications

  • TX Wavelength: 1310nm (CWDM4 / DR4)
  • TX Output Power: -3.5 to +3.4 dBm (per lane)
  • RX Sensitivity: ≤ -8.4 dBm (per lane)
  • Extinction Ratio: ≥ 3.5 dB
  • Optical Return Loss Tolerance: ≥ 20 dB

Electrical & Power

  • Supply Voltage: 3.3V
  • Max Power Consumption: ~10W typical
  • Host Interface: 8x53.125 Gbps electrical lanes (PAM4)

Standards & Compliance

  • IEEE 802.3bs (400GBASE-DR4)
  • OSFP MSA compliant
  • OIF-400G-SR4-OSFP
  • RoHS 6 compliant
  • Digital Diagnostic Monitoring (DDM / DOM) supported

Physical & Environmental

  • Form Factor: OSFP
  • Operating Temperature: 0°C to 70°C (Commercial)
  • Storage Temperature: -40°C to 85°C
  • Humidity: 5% to 85% non-condensing

Compatibility

  • Designed for NVIDIA (Mellanox) ConnectX-6, ConnectX-7, and Spectrum-3/4 switch platforms
  • Dell-coded for use in Dell PowerSwitch and Dell EMC networking platforms
  • Compatible with 400G OSFP ports on supported switches and NICs
  • Verify platform compatibility before ordering
