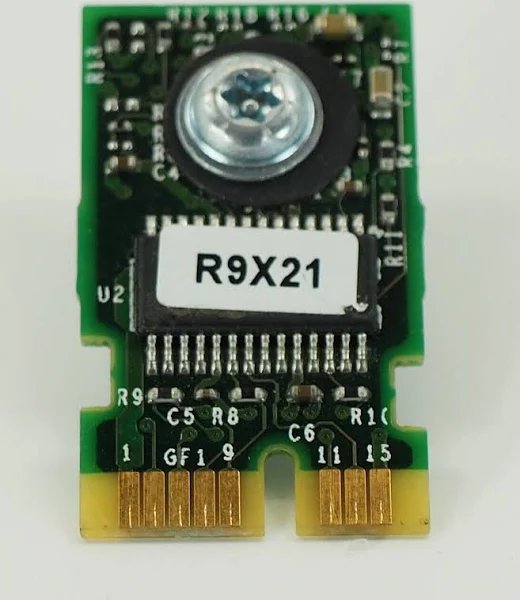

Dell G13 Trusted Platform Module (TPM) for PowerEdge R430 / R530 / R730

The Dell R9X21 is a Generation 13 (G13) Trusted Platform Module (TPM) designed for Dell PowerEdge R430, R530, and R730 servers, providing hardware-based cryptographic security for measured boot, BitLocker encryption, and secure credential storage in enterprise server environments.

Key Features

• Hardware-based TPM 1.2 security for Dell PowerEdge G13 servers
• Enables BitLocker Drive Encryption on Windows Server via TPM key storage
• Supports measured boot and Trusted Execution Technology (TXT)
• Direct plug-in module — installs into dedicated TPM header on G13 server boards
• Dell-validated component for PowerEdge R430, R530, and R730 platforms

Product Specifications

• Part Number: R9X21
• Manufacturer: Dell
• TPM Version: 1.2
• Compatible Servers: Dell PowerEdge R430, R530, R730
• Generation: G13 (13th Generation)
• Interface: SPI (dedicated TPM header)
• Form Factor: Plug-in module

Component Specifications

• Cryptographic Functions: RSA, SHA-1, HMAC, RNG
• Key Storage: Non-volatile storage for TPM keys and certificates
• Measured Boot: Yes (PCR registers for boot integrity)
• Physical Security: Anti-tamper protection
• Power: Supplied via server motherboard header
• Installation: Tool-free plug-in to TPM connector

Use Cases

• Enabling BitLocker Drive Encryption on Dell PowerEdge R430/R530/R730 running Windows Server
• Satisfying compliance requirements (FIPS, HIPAA, PCI-DSS) mandating hardware-based key storage
• Measured boot and remote attestation for secure server provisioning
• Trusted Execution Technology (TXT) enablement for hypervisor integrity verification

Compatibility

• Compatible with Dell PowerEdge R430, R530, and R730 (G13 generation)
• Not compatible with G14 (R440/R540/R740) or newer PowerEdge generations
• Supported by Windows Server 2012 R2 / 2016 / 2019 TPM 1.2 features
• Managed via Dell iDRAC for TPM status monitoring and configuration

Frequently Asked Questions

Does the R9X21 support TPM 2.0?

No — the R9X21 is a TPM 1.2 module. For TPM 2.0 support on G13 servers, a separate TPM 2.0 module (where available) is required. Verify BIOS and OS requirements before ordering.

Is the R9X21 compatible with G14 PowerEdge servers (R440, R740)?

No — the R9X21 is designed for G13 PowerEdge servers only. G14 servers use a different TPM connector and require a G14-specific TPM module.

Will adding a TPM erase data on existing drives?

Installing the TPM module itself does not erase drive data. However, enabling BitLocker after TPM installation will encrypt drives — ensure recovery keys are backed up before enabling encryption.

The Dell R9X21 TPM module bridges the gap between hardware security compliance requirements and existing PowerEdge G13 infrastructure — providing a straightforward, Dell-validated path to enabling BitLocker encryption, measured boot, and hardware-rooted trust on R430, R530, and R730 servers.
