SAS and SATA drives look almost identical from the outside. Pull one out of a server and hand it to someone. They'd be hard-pressed to tell you which is which just by looking. The difference that matters is on the inside, in how each drive talks to the rest of the server. That difference decides how well your server holds up under real workloads.

If you're picking hard drives for a server build or a replacement, the SAS vs SATA hard drive question usually comes down to three things. How much speed you actually need. How much downtime you can tolerate. And how much you want to spend per gigabyte.

SAS vs SATA: The Core Difference

SAS stands for Serial Attached SCSI. SATA stands for Serial ATA. Both are ways for a drive to connect to a server and move data back and forth. The similarities mostly end there.

SATA drives connect through a single path to the server. If that path has a problem, the drive drops off the system. SAS drives connect through two paths at once. Lose one, and the drive keeps running on the other. That dual-port design is the single biggest reason SAS costs more and gets used in servers that can't afford downtime.

SAS also uses a different, more capable command set than SATA. It handles more requests at once, checks data more thoroughly, and supports connecting far more drives to a single controller. None of that shows up as one headline number on a spec sheet. But it adds up in a busy server.

Speed and Reliability: Where SAS Pulls Ahead

On paper, the speed gap is real. Current SAS drives run at 12Gb/s. The newest SAS-4 spec reaches 24Gb/s on the latest server platforms. SATA has stayed capped at 6Gb/s for years, and that isn't changing.

Spin speed tells a similar story. SAS drives commonly spin at 10,000 or 15,000 RPM, built for workloads that hit the disk constantly. SATA drives typically run at 7,200 RPM. That's plenty for sequential reads and writes, but it starts to strain under heavy random access.

Reliability follows the same pattern. SAS drives are built and rated for continuous, around-the-clock operation, with far lower error rates than SATA. That matters most in a RAID array. One drive's read error can turn into a rebuild, and a rebuild can turn into a second drive failing under the extra load. Take a SAS server hard drive like a 10K RPM 2.5-inch drive built for enterprise ProLiant systems. It's built around exactly that kind of continuous duty.

Where SATA Still Makes Sense

None of this makes SATA a bad choice. It makes it a different choice.

SATA drives cost noticeably less per gigabyte, and they're often available in larger capacities than SAS. For backup targets, file servers, and archival storage, that tradeoff usually favors SATA. The drive mostly sits and holds data there, rather than serving constant requests. Paying SAS prices for a backup drive that reads once a night doesn't get you much.

A SATA server hard drive, such as a 1TB drive built for PowerEdge servers, covers this kind of role well. Dev and test environments, secondary storage tiers, and non-critical workloads are all reasonable places to run SATA instead of SAS.

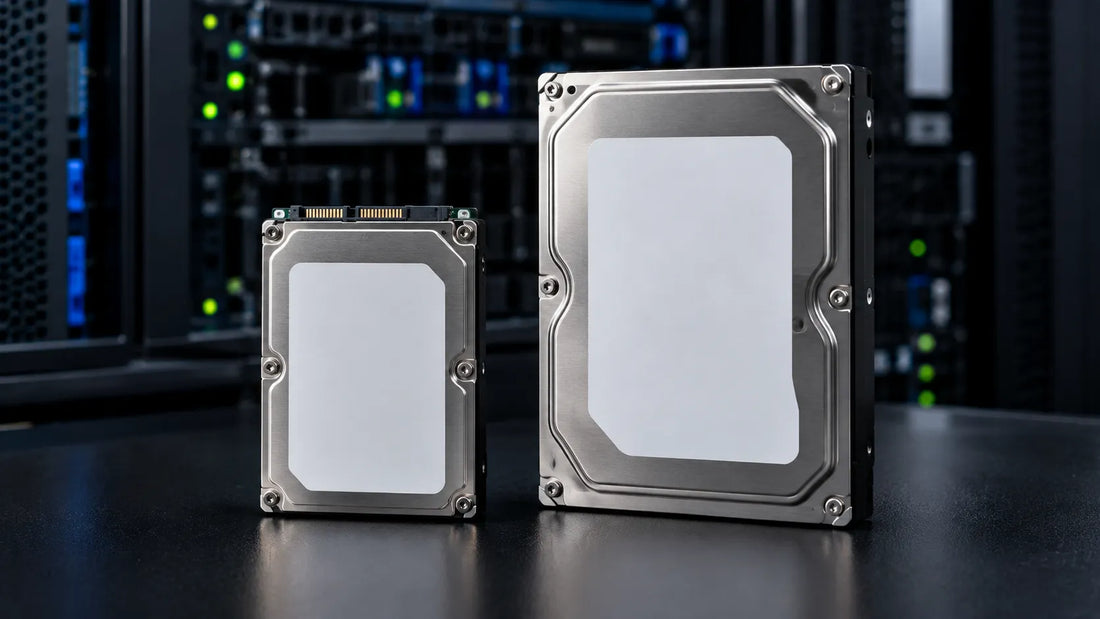

2.5-Inch vs 3.5-Inch: A Separate Decision

Interface and form factor are two different questions, even though people often mix them up. A 2.5 vs 3.5 server hard drive choice is really about physical size. It's about how many drives fit in your chassis, not about SAS versus SATA directly.

2.5-inch drives are smaller and let you pack more of them into the same rack space. A single 2U server can often hold two dozen 2.5-inch bays. That means more spindles and more combined performance for workloads that benefit from spreading data across many disks.

3.5-inch drives are larger and hold more data per drive, often reaching well past 20TB in nearline models. A comparable server usually fits far fewer 3.5-inch bays than 2.5-inch ones, but each drive carries more capacity. That makes 3.5-inch the common choice for bulk storage and backup. 2.5-inch tends to dominate performance-focused and virtualization hosts.

Both SAS and SATA come in either size. This decision runs alongside the interface choice, not in place of it.

Matching the Drive to the Job

Put the two decisions together, and most servers fall into one of a few patterns.

• A database or virtualization host that needs fast, reliable access: 2.5-inch SAS, 10K or 15K RPM.
• A backup target or file server that needs capacity more than speed: 3.5-inch SATA or nearline SAS.
• A development or test box where a drive failure is an inconvenience, not an emergency: SATA in whichever size fits your chassis.
• A mixed workload with a tight budget: SAS for the datastore, SATA for the bulk storage, split across the server's available bays.

If you're not sure which pattern your build falls into, think about what happens if the drive fails at 2am. The more that answer worries you, the stronger the case for SAS.

Frequently Asked Questions

Is SAS always faster than SATA?

In real workloads, yes, especially where the drive handles many requests at once. SAS's higher spin speeds and dual-port design both help under load. For simple sequential transfers, the practical gap is smaller.

Can I use a SATA drive in a server built for SAS?

Often, yes, since most SAS backplanes accept SATA drives physically. You lose the dual-port failover and some of the reliability SAS offers, so check your server's documentation first.

Why do SAS drives cost more than SATA?

The dual-port design, the more capable command set, and the higher build quality all add cost. You're paying for uptime and endurance, not just raw storage.

Does 2.5-inch or 3.5-inch affect drive speed?

Not directly. Speed comes from the interface and RPM, not the physical size. Form factor mostly affects capacity and how many drives fit in your server.

What's nearline SAS, and how does it fit in?

Nearline SAS pairs the higher-capacity mechanics used in SATA drives with a full SAS interface. You get SATA-like capacity and cost with SAS's dual-port reliability. That makes it a common middle ground for backup and secondary storage.

Confirm Your Server's Backplane Before You Order

Every server has a backplane built for a specific interface, size, or both. Some accept SAS and SATA in the same bay. Others are pickier, especially on older hardware or specific RAID controller setups.

Check your server's documentation, or the part number on your existing drives, before you order a replacement or an upgrade. It's a five-minute step. It saves you from a drive that spins up fine on the bench, then never shows up to the RAID controller. Browse the full server hard drives range once you know what you're looking for. Match capacity and interface to the job the drive actually needs to do.
